Description
| Place of Origin: | China |
| Brand Name: | Packing Boxes |
| Model Number: | |
| Certification: |
Description

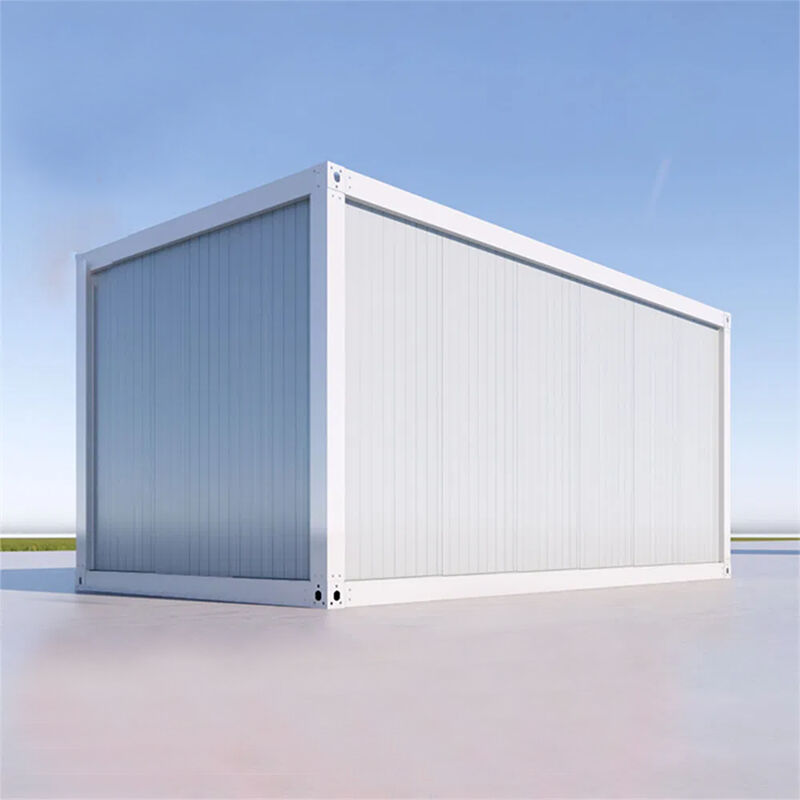

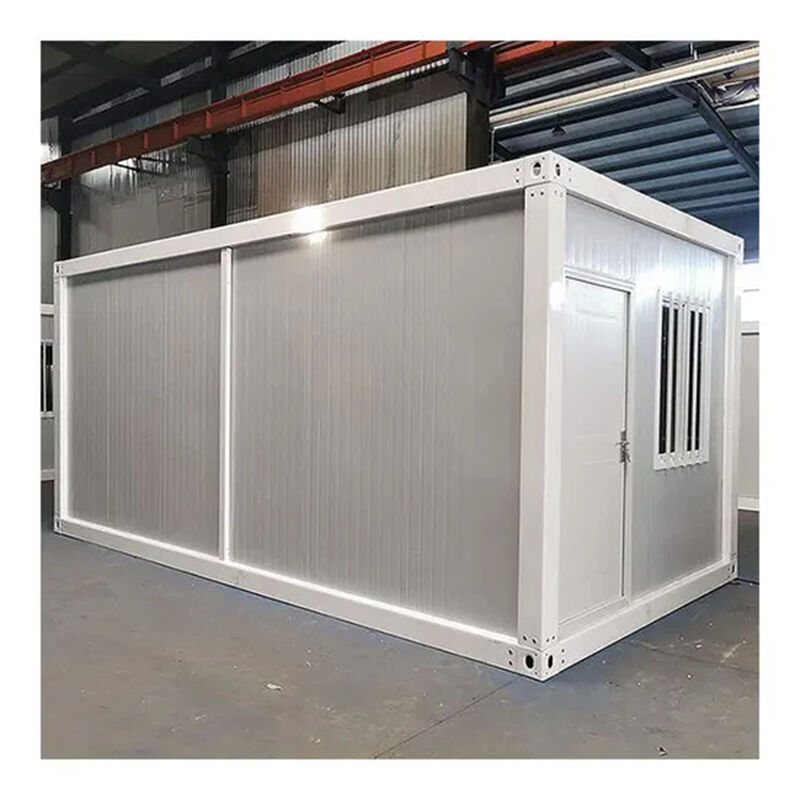

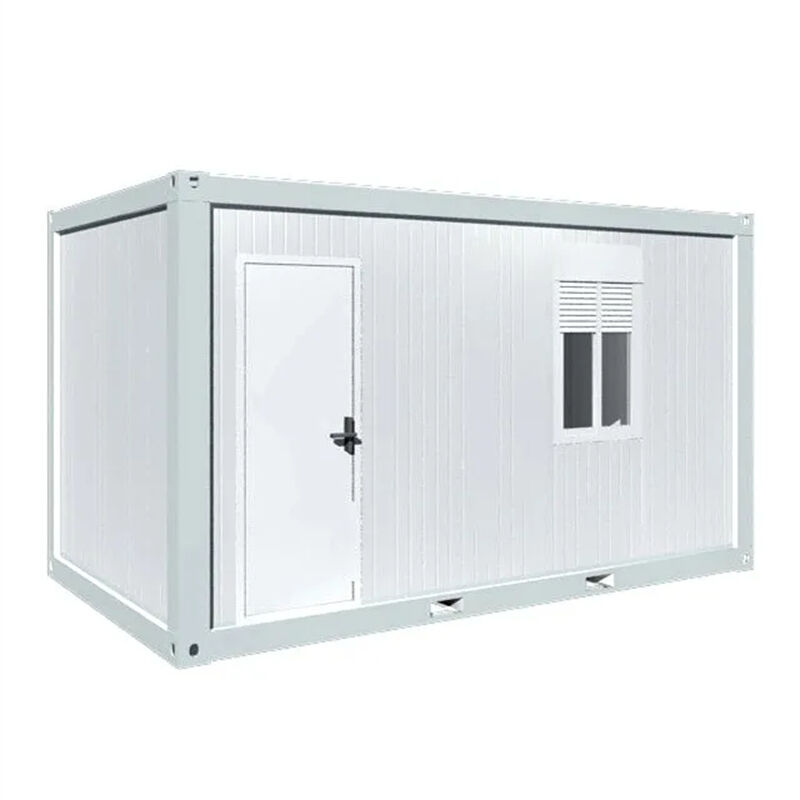

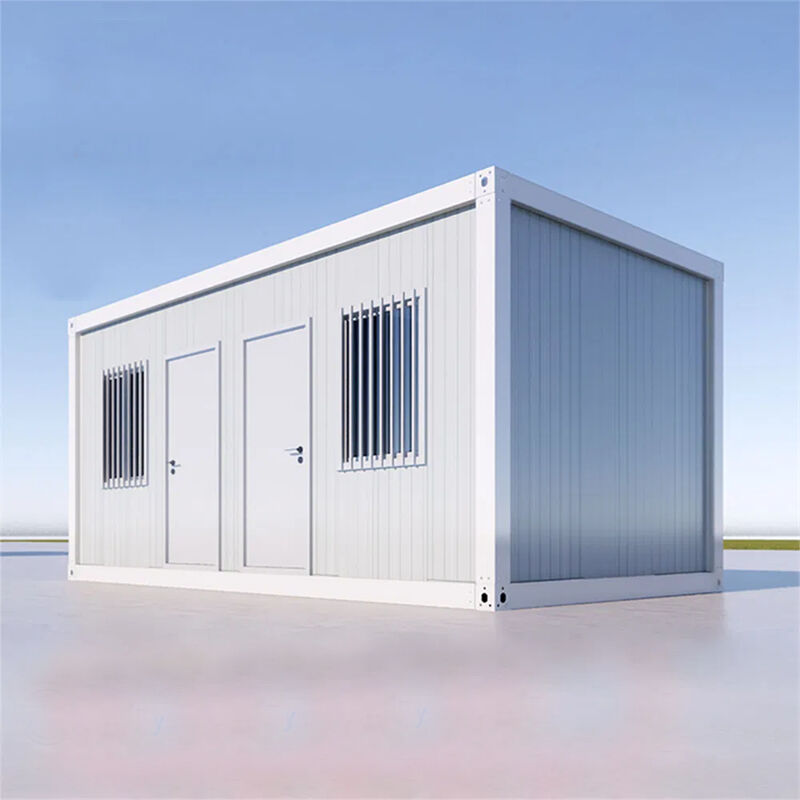

Packing box house is a construction mode that can quickly assemble into a profitable house. Its main characteristics are that it is a temporary house that is easy to demolish, convenient to store, and can be reused multiple times.
In addition to some mainstream methods, the installation of the packing box room can also be directly lifted. This method is mainly used on some already used packing box rooms during the installation process. During the migration process, the enterprise lifts and migrates the entire packing box room without dismantling and installing it, which is simpler.
Quick Detail
1、 Safe and comfortable
The materials used in the packaging box room meet the relevant national requirements, with seismic resistance of level 8, wind resistance of level 10, fire resistance of level A, high safety performance, large living space, bright, breathable, soundproof, and thermal insulation inside the box, making it easy for people to enter
Experience the warmth and comfort of 'home'.
2、 Environmental protection and energy conservation
The installation process has zero construction waste, the construction period is shortened by 80% compared to traditional buildings, the construction labor is saved by 70%, the concrete loss is reduced by 98%, the construction water consumption is reduced by 70%, and the comprehensive energy saving exceeds 50%.
3、 Easy and fast installation
A packing box room is a movable and reusable building product. The box unit structure is a standard component made of special residual steel, which is connected by bolts between boxes. The structure is simple and safe
Easy and fast installation.
4、 Qicheng Customization
Adopting modular design and factory production, with the box as the basic unit, it can be used independently or form spacious usage space through different combinations of horizontal and vertical directions, and can be stacked vertically. approve

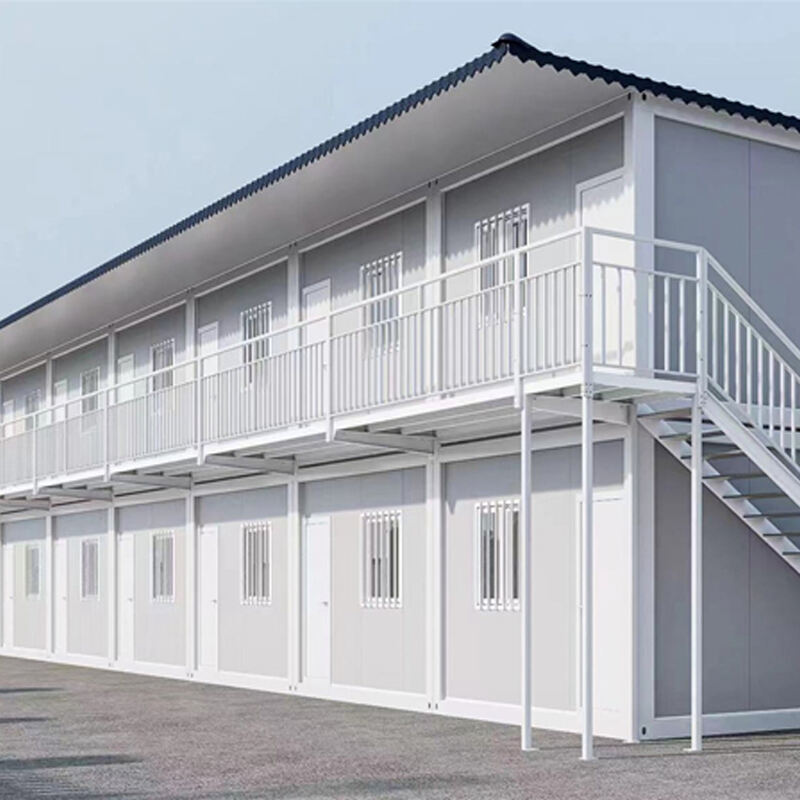

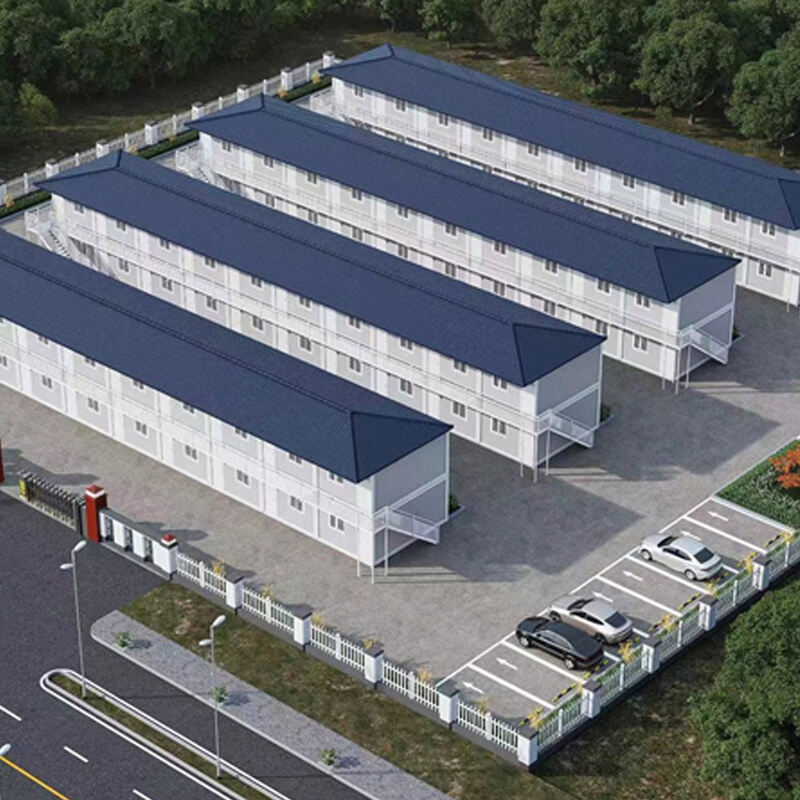

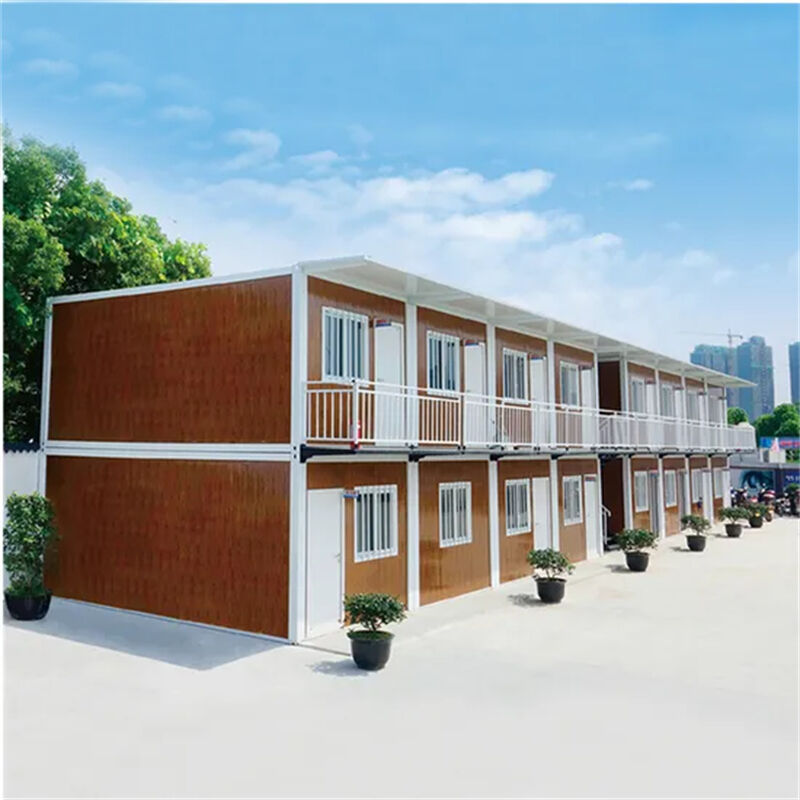

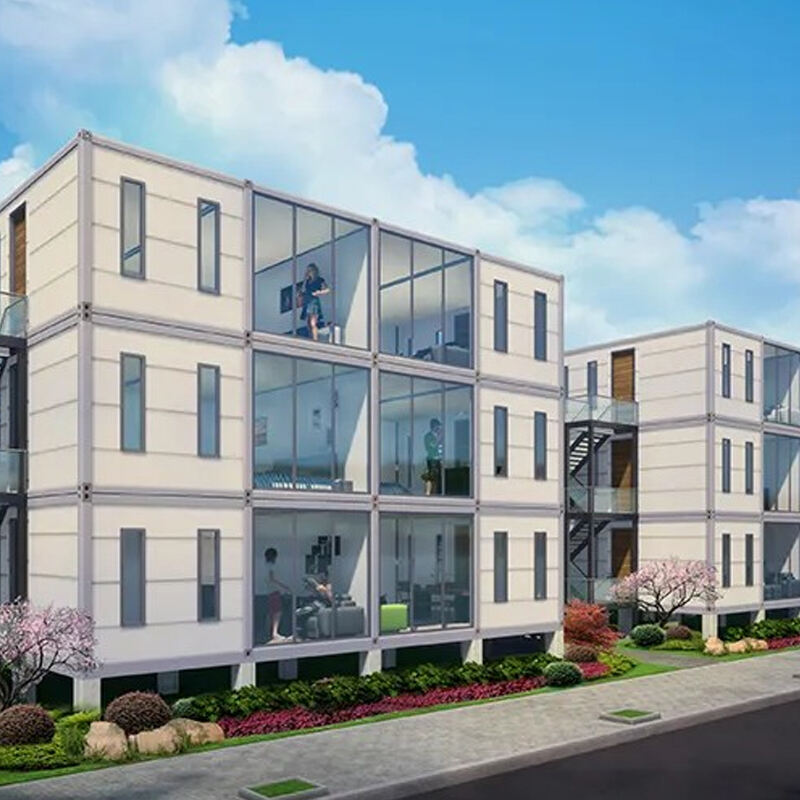

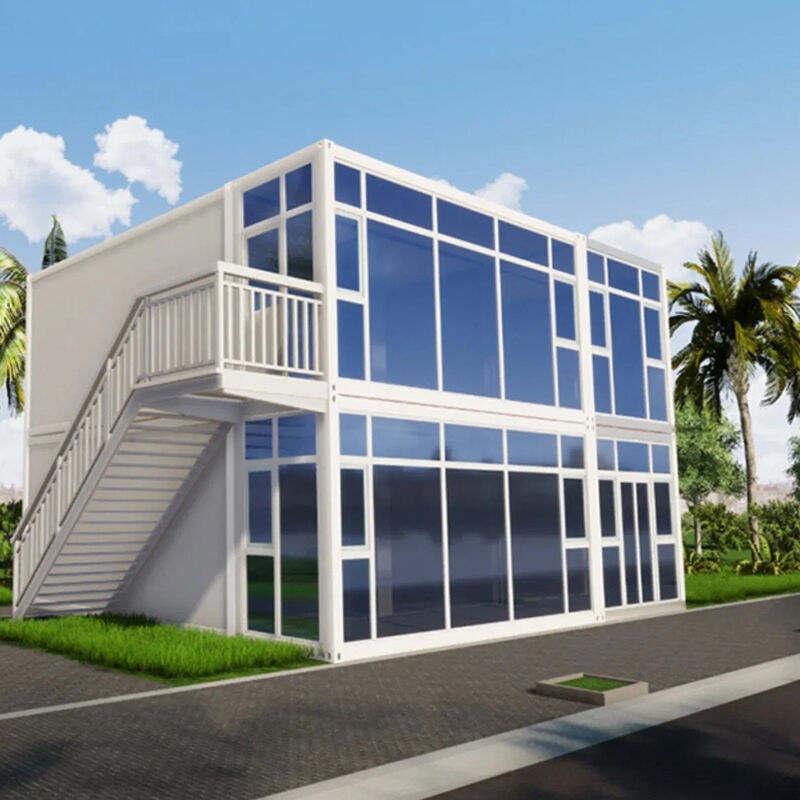

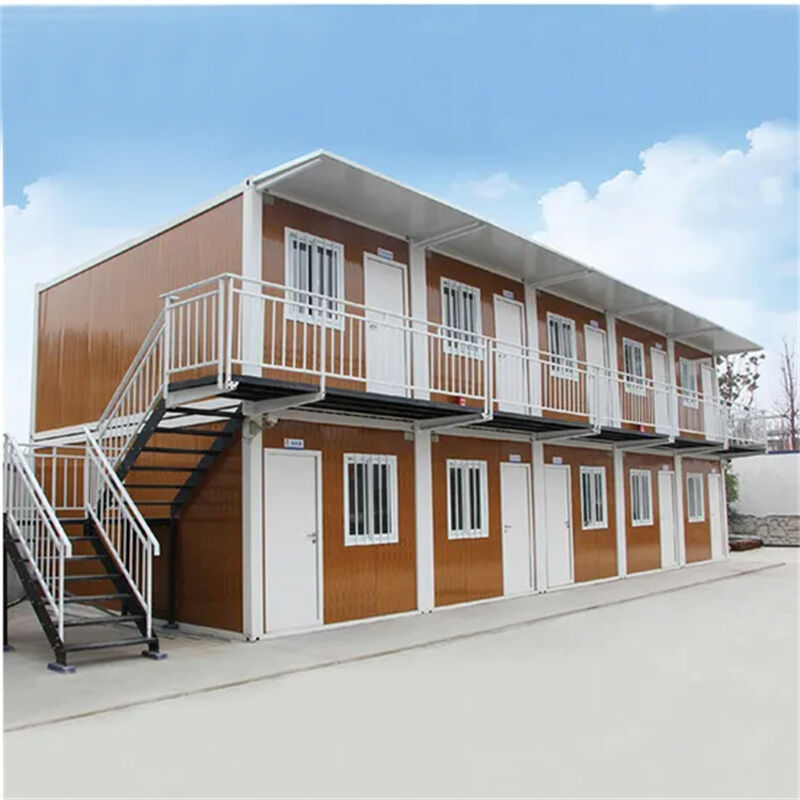

Used for temporary dormitories, offices, tourism, car campsites, exhibition halls, hotels, schools, shops, and more.

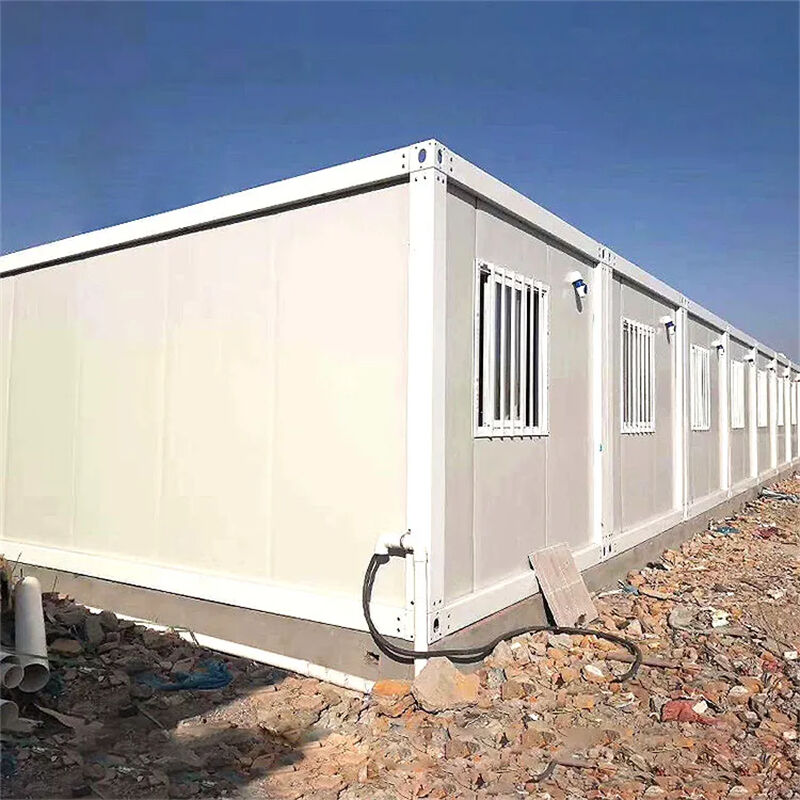

Applications
Specifications
| Packing box | ||
| External dimensions | 5850*2430*2896mm |  |
| Internal dimensions | 5690*2270*2500mm | |
| Packing size | 5850*2430*560mm | |
| Weight | kg | |
| 2.3mm main frame | Top frame (width 180mm) |
4 large hanging heads, beam L5428mm * 2 Secondary beam L2 128 mm * 2 galvanized angle fittings-4, galvanized 80C steel 1.0mm * 6 |
| Bottom frame (width 160mm) |
4 large hanging heads, 2 pieces of beam L5668 2 pieces of L2668 luxury galvanized angle fittings-4 square tubes 100mm * 50mm * 9 pieces |
|
| Column |
160 * 160 * 2510-4, equipped with 12 * 30 high-strength hexagon socket bolts including L-shaped column stiffener |
|
| The color roll is capped | 75 insulation cotton, PE film, color steel skin plate 0.4mm, special waterproof method | |
| Drain | Downspout | ¢ 50mm, PVC downpipe L2730mm, 4 pieces |
| Ceiling system | Ceiling tile | 7 pieces of 0.3mm thick 831 integrated ceiling tiles |
| Color steel angle aluminum | Fixed ceiling tile (same material as ceiling tile) | |
| Interior trim | Internal corner of column | 4 internal corners of the column (including internal corner fixings) |
| Ground | Cement sanding plate | 18mm cement sand plate 1178 * 2820 * 5 |
| Floor | 1.0mm floor leather with wear-resistant layer | |
| The door | Steel door | Special steel door for packing box 970 * 1970 stainless steel pressing handle AB lock |
| Window | Plastic steel window | Single-glass double-push plastic-steel window 930 mm * 1130mm/800 mm * 1130mm |
| Wallboard | EPS or rock wool board | Type 950, 50mm thick, double-sided 0.25 mm iron sheet, double orange peel, single film, 50 kg rock wool |
| Internal corner folding piece | / | Finished color steel 2500 mm * 4 pieces |
| Skirting | / | PVC white skirting 5800mm 3 pieces |
| Auxiliary materials | / | Drilled tail pin, 995 structural adhesive, internal box connector |
| Electric Distribution | Voltage | Various standards to choose from |
| Complete set of two-core circuit | Main line 6 ㎡ Air conditioning line 4 ㎡ Socket line 2.5 ㎡ Lamp line 1 ㎡ | |
| Power distribution | PVC six-way distribution box * 1 32 A leakage protector * 1 2 P circuit breaker * 1 industrial socket * 1 | |
| Lighting | LED ceiling strip light * 2 | |
| Socket | 3-socket * 1; 5-socket * 2 | |
| Switch | Single opening * 1 | |
