Description
| Detachable container house | ||
| External dimensions | 5850*2990*2880 |  |
| Internal dimensions | 5690*2830*2510 | |
| Weight | 1200kg | |
| 2.3mm frame (bare steel 2.0mm) | Top frame 180mm |
Angle piece hanging head 3.0mm * 4 paint 80C steel 1.0mm * 5 square tube: 30 * 30 * 1.0mm * 1, 20 * 20 * 1.0mm * 2 upper beam: L = 5580mm 2.3mm upper beam: L = 2670mm 2.3mm |
| Bottom frame 160mm |
Angle fitting lifting head 3.0mm * 4 square tubes: 100 * 50 * 1.0mm * 9 lower cross beam: L = 5580 mm 2.3mm lower secondary beam: L = 2670 mm 2.3mm |
|
| Column 160 * 160 |
Baking varnish 160 * 160 * 2510mm 2.3mm * 4 pieces, galvanized hexagon socket bolt (12 * 30) * 40 reinforcing ribs 2.5mm * 2 L-shaped connectors * 8 pieces |
|
| Color steel capping | 0.4mm capping corrugated single tile, special waterproof method | |
| PE resin moisture-proof film, 75 mm glass wool insulation quilt | ||
| Ceiling system | Integrated ceiling tile | 7 pieces of 0.3mm thick 831 ceiling tile with angle iron |
| Color steel angle aluminum | The ceiling tile is made of the same material and is used for fixing the ceiling tile. | |
| Ground system | Cement slab | 5 cement sand plates with thickness of 18 mm Specification: 1164 * 2820mm |
| Interior trim line | Internal corner line | 4 pieces of white gray color steel finished column internal corner 2510 |
| The door | Steel door | Plate door of 970 * 1970mm packing box, 0.4mm thick, 0.6mm frame, stainless steel handle AB lock |
| Window | Plastic steel window | Single-glass double-push 0.3mm 930 * 1130mm with anti-theft net and screen window * 2 |
| Wallboard | 950 | 50mm rock wool composite board, volume weight 50kg/m2, double-sided orange peel pattern, single-sided film coating |
| Auxiliary materials | Accessories and auxiliary materials | Screws, screws, drill pins, internal box connectors, connecting plates, sealant, neutral silicone weatherproof sealant |
| National standard, European standard, American standard and Australian standard of electrical system are optional | Light | LED ceiling strip light * 2 |
| Voltage | Various standards to choose from | |
| Complete set of two-core circuit | Main line: 4 ㎡, air conditioning line: 4 ㎡, socket line: 2.5 ㎡, lamp line: 1.0 ㎡ | |
| Switch | Single opening * 1 | |
| Socket | 3 socket * 1 (16 A) 5 socket * 2 (10 A) | |
| Electric Distribution | Distribution box Industrial socket box 6-way * 1, 32A leakage protector * 1, industrial socket * 1, circuit breaker * 1 | |
Description

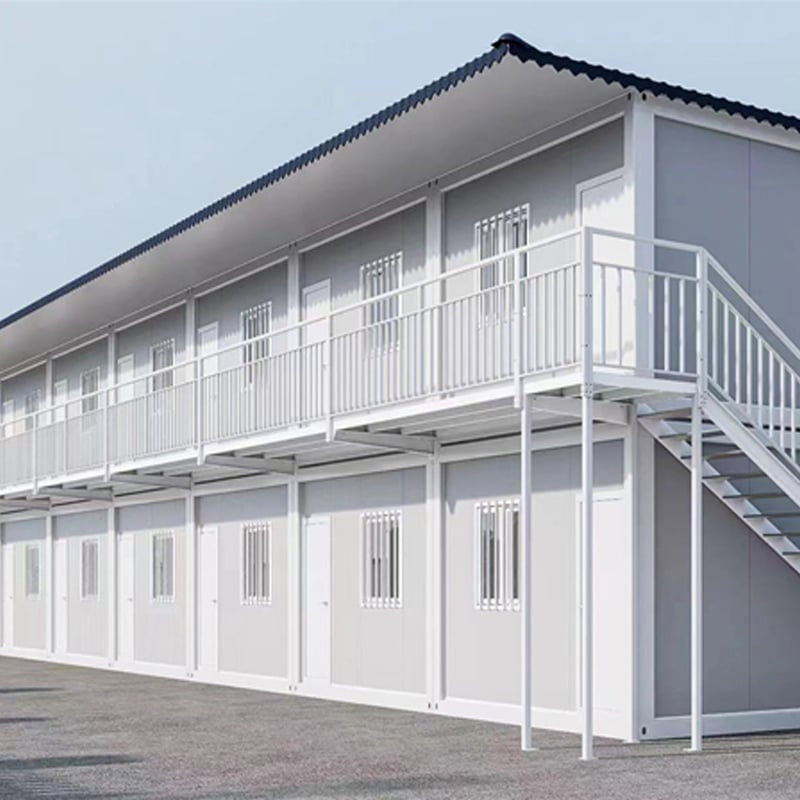

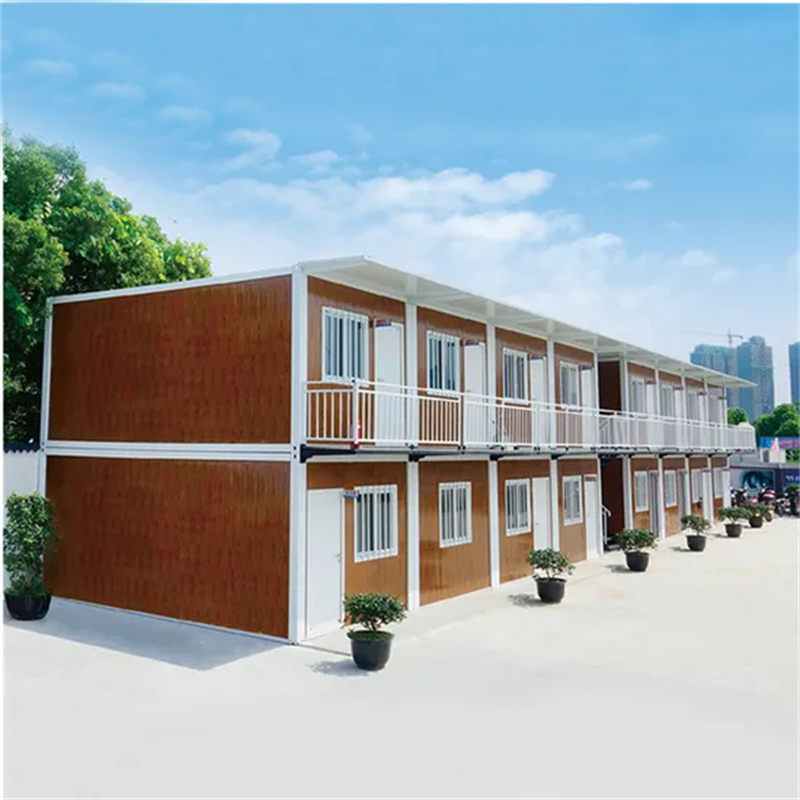

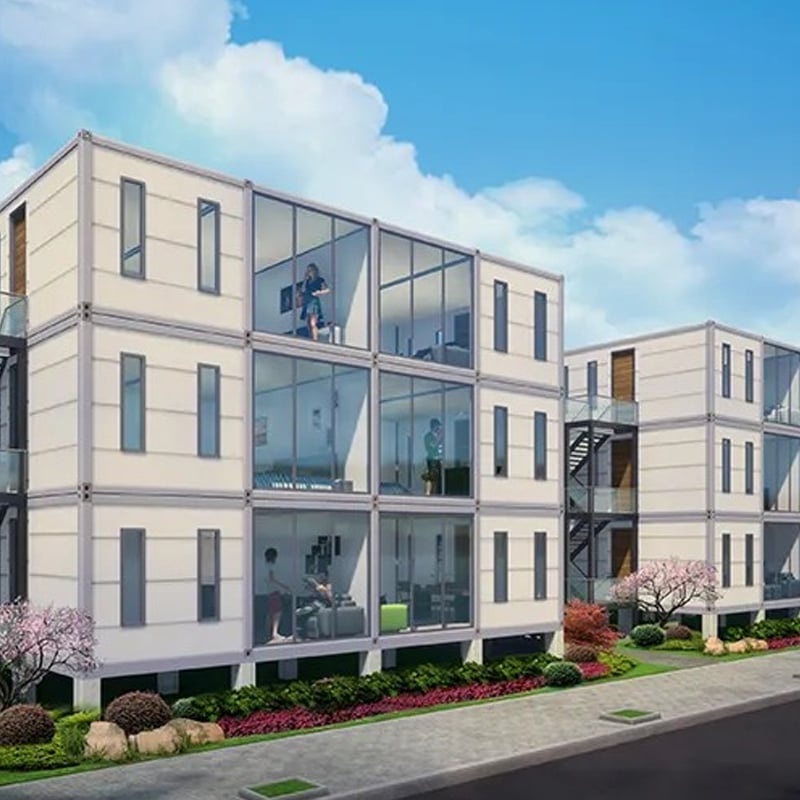

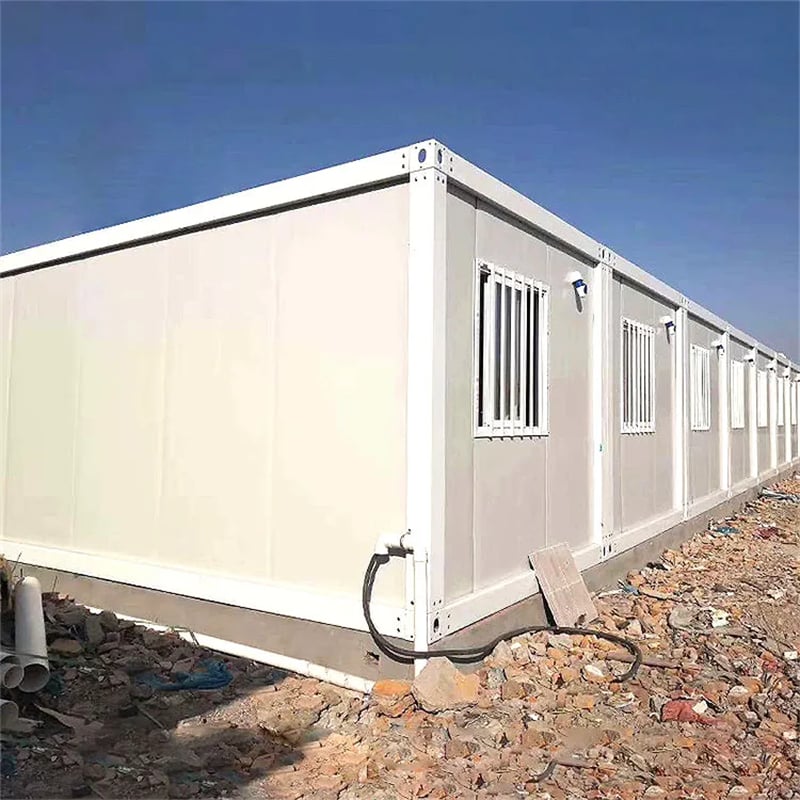

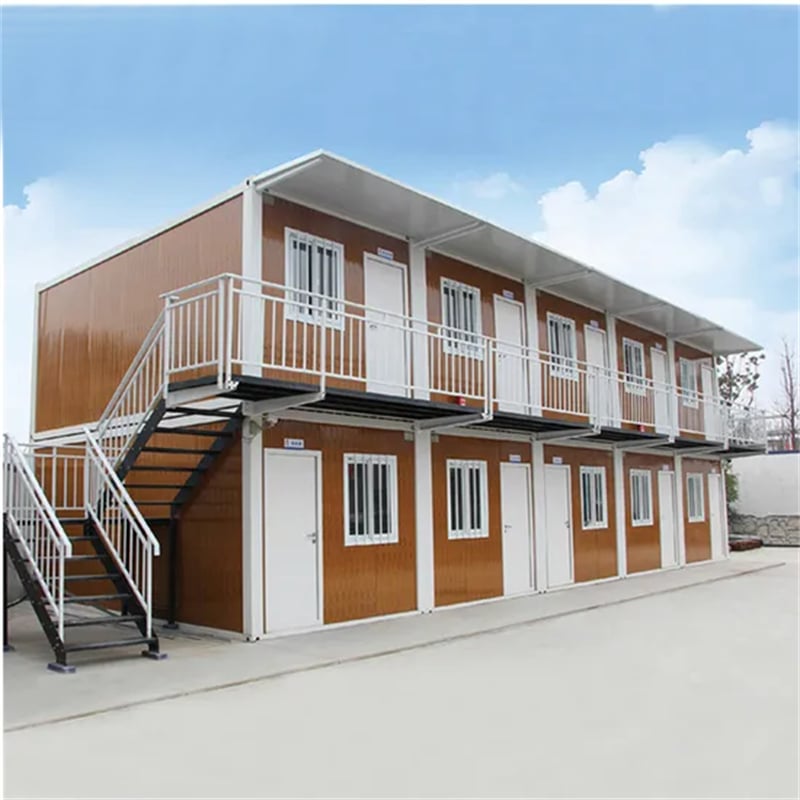

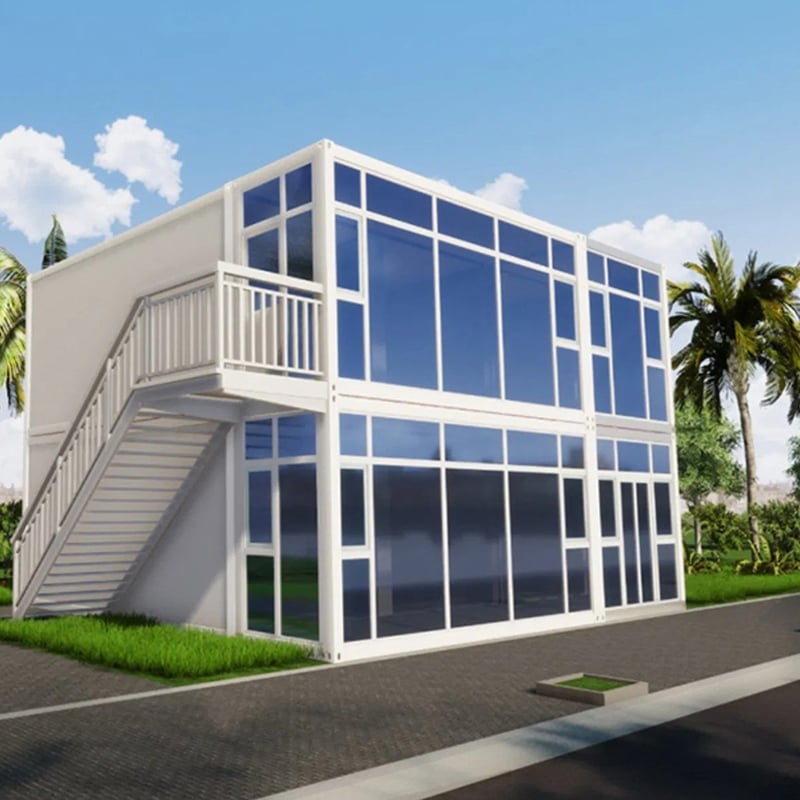

Detachable Container is a movable and reusable construction product. Also known as "combination container room" or "container room".
Adopting modular design and factory production, with the box as the basic unit, it can be used independently or form spacious usage space through different combinations of horizontal and vertical directions. The vertical direction can be stacked
Stack up. The box unit structure is a standard component welded with special steel, and the boxes are connected by bolts. The structure is simple and the installation is convenient and fast.
Fast LCL is used for high-end demand of temporary construction products on construction sites, such as office and accommodation spaces for project managers, conference rooms, etc; Field operation rooms, such as mobile offices and dormitories for field exploration and construction;
Emergency buildings, such as military mobile command centers, emergency mobile command centers, disaster relief mobile command centers, etc.
Product feature
1. Convenient transportation, especially suitable for units that frequently change construction sites;
2. Durable and sturdy, made entirely of steel, with strong seismic and deformation resistance capabilities;
3. Good sealing performance and strict manufacturing process make this fast consolidated container have good water tightness;
4. Fast LCL is based on a standard steel chassis, which can generate many combination spaces. Such as conference rooms, dormitories, kitchens, bathrooms, etc.
5. Easy disassembly and assembly, excellent performance, stable and firm, good shock resistance, waterproof, fireproof and anti-corrosion, lightweight. The house is a monolithic structure with a frame inside, and the walls are made of color steel composite panels, which can be relocated as a whole and have a long service life.
