Description
Place of Origin: | China |
Brand Name: | Apple Cabin |
Size: | 5800*2150*2400mm |
Building Area: | 12.5m |
20ft | External dimensions (mm) | 5850*2200*2480 |
Internal dimension (mm) | 5610*2040*2240 | |
Weight (kg) | 1500 | |
30ft | External dimensions (mm) | 8500*2200*2480 |
Internal dimension (mm) | 8180*2040*2160 | |
Weight (kg) | 2000 | |
40ft | External dimensions (mm) | 11500*2200*2480 |
Internal dimension (mm) | 11180*2040*2160 | |
Weight (kg) | 3000 |
Description
Apple Warehouse is an innovative modular mobile warehousing solution designed specifically for the apple industry, integrating planting assistance, intelligent warehousing, and logistics transfer. The product adopts environmentally friendly steel structure and is equipped with:
Constant temperature preservation system: precise temperature control of 0-5 ℃, humidity adjustment, extending apple preservation period by more than 30%;
Photovoltaic power supply: Roof solar panels achieve energy self-sufficiency and are suitable for mobile deployment in fields/orchards;
-Intelligent Management: IoT sensors monitor temperature, humidity, and pest infestations in real-time, with data directly connected to a mobile app.

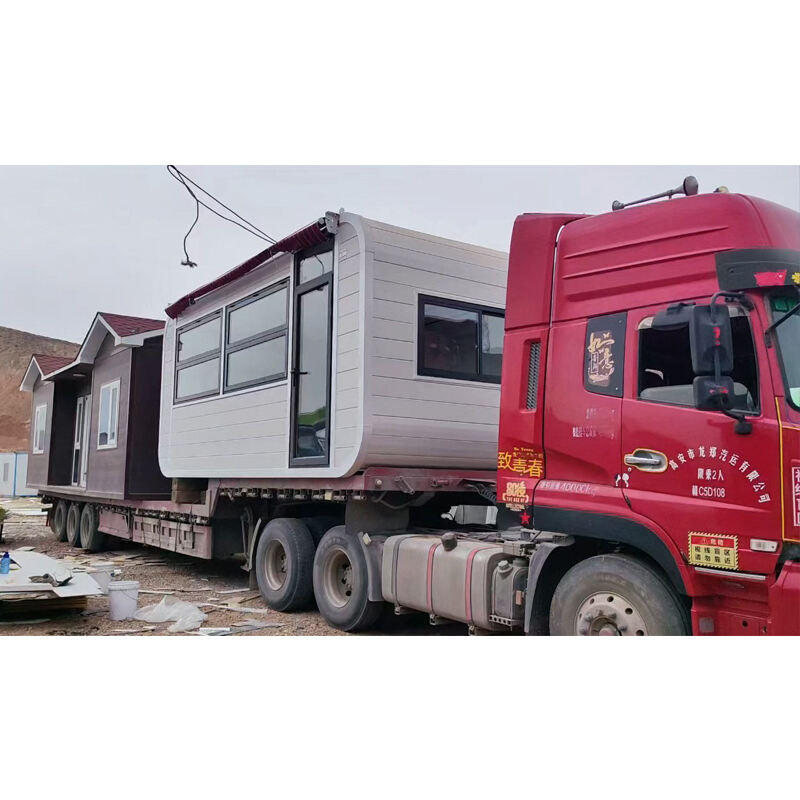

Suitable for direct sales in production areas, temporary distribution, e-commerce pre storage and other scenarios, it can be quickly disassembled and transported, solving the problem of fixed location selection for traditional cold storage. Assist fruit farmers in reducing costs and increasing efficiency, achieving full freshness protection from the branches to the tip of the tongue.
Core advantages: Ready to use, low energy consumption, modular expansion, direct access from orchards to consumer end.
Quick Detail
1.Reliable structure:Light steelstructure is the framework of our building,which meets the design requirements of steelstructures.
2.Easy to install and disassemble:Standardized components make installation and disassembly easier.Especially suitable for emergency projects.
3.Aesthetics:Due to the pre coated steel plate,the overall structure is beautiful.
4.Environmental economy:Reasonable design makes it reusable.
5.Cost performance:Good materials,reasonable prices,one-time investment,low foundation requirements,short completion time,and high cost performance.
Applications
Specifications
20ft carved board apple barn | ||
Basic characteristics | External dimensions (mm) | 5850*2200*2480 |
Internal dimension (mm) | 5610*2040*2240 | |
kg | 1500 | |
Steel structure system | Galvanized square tube | 100 * 100 * 6000mm/piece |
40 * 80 * 1.5 * 6000mm/piece | ||
80 * 120 * 2.0 * 6000mm/piece | ||
Accessory | Welding wire paint and antirust paint | |
Arc steel plate molding | 2.0mm | |
Bottom galvanized color coil substrates | 0.35mm | |
Exterior wall cornice white gloss paint | Thinner 10 kg | |
Embedded steel plate of water heater | 3.0mm | |
Lifting parts | 10 mm thick | |
Exterior wall system | Carved board | Pattern color optional |
Interior wall system | Interior wall trim panel | Pattern color optional |
Cement fib board for inner wall of toilet | 1200*2400*10mm | |
Wooden square of interior wall | 30*40*3500mm | |
Ground system | Cement fibreboard | 1177*2820*18mm |
Composite wood floor in bedroom and living room | 1220 * 200mm/block with pavement | |
Toilet floor leather | 2mm with plastic floor glue | |
Toilet floor and wall waterproofing | Toilet wall cement board substrate | |
Floor PVC skirting | 3000mm/piece | |
Roofing system | Corrugated roof panels | 1200 1.2mm |
Thermal insulation system | Rock wool board for wall | 50mm 1200 * 600mm 50kg unit weight |
Ground rock wool board | 50mm 1200 * 600mm 50kg unit weight | |
Ceiling glass wool | 75mm glass wool 20kg 14m2/roll | |
Ceiling system | Ceiling batten | 20 * 40 * 3500 mm/piece |
Ceiling stone plastic plate | 400mm 6mm | |
Top wall line (white) | 3000mm/piece | |
Door and window system | Broken bridge aluminum side hung door (iron grey) | 1 |
Broken bridge aluminum window | 2 55mm5 + 9 + 5 | |
Broken bridge aluminum window in the bathroom | 500*500mm | |
Curtain Wall | 5 + 9 + 5mm Ford Blue | |
Curtain wall aluminum alloy T-shaped strip edging | 25mm wide | |
Glass sliding door of toilet | 1 | |
White aluminum alloy edge of interior wall | 50*70*6000mm | |
Wooden door | Composite wooden door | |
Water and electricity system | J15 distribution box | Concealed |
C32A earth leakage protector | 1 set | |
C16 A circuit breaker | 2 sets | |
Single open switch | 2 sets | |
Five-hole socket | 3 sets | |
Round ceiling lamp | 2 sets | |
Circuit | 2.5 square meters 4 square meters 100 meters/plate | |
Water supply and drainage materials | Including indoor embedded water supply and drainage |
