20FT Apple Cabin│Modern Apple Cabin Tiny House
Apple Cabin is a type of modern, prefabricated, modular housing or structure known for its unique, often rounded or capsule-like design, resembling an apple or space pod, offering quick setup and portability for diverse uses like tiny homes, hotels, offices, or retail spaces, built with eco-friendly materials and often featuring smart, compact interiors.
Size: L5800mm X W2200mm X H2480mm
Area Covered: 13 Square Meters
Net Weight: 2000 KGS
Applications: Tiny Homes, Hotels, Offices, Resort, Outdoor Camping, Emergency Sites,etc.
Delivery Time: 20-30 Days

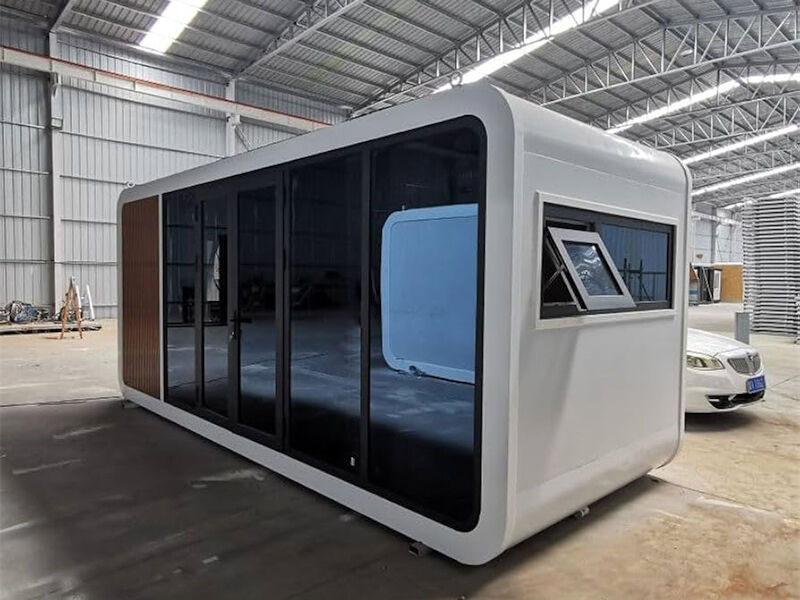

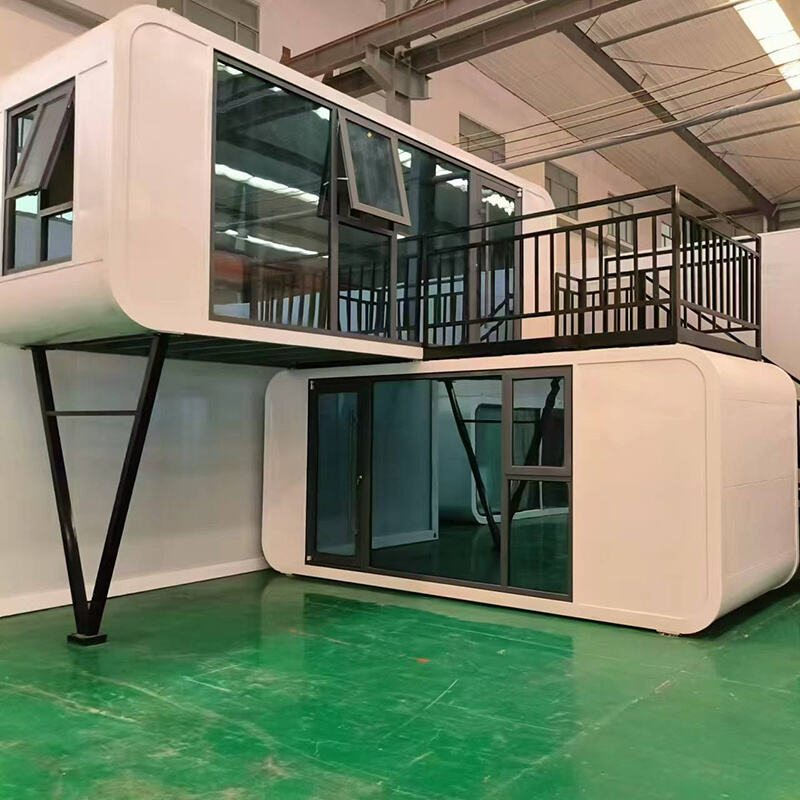

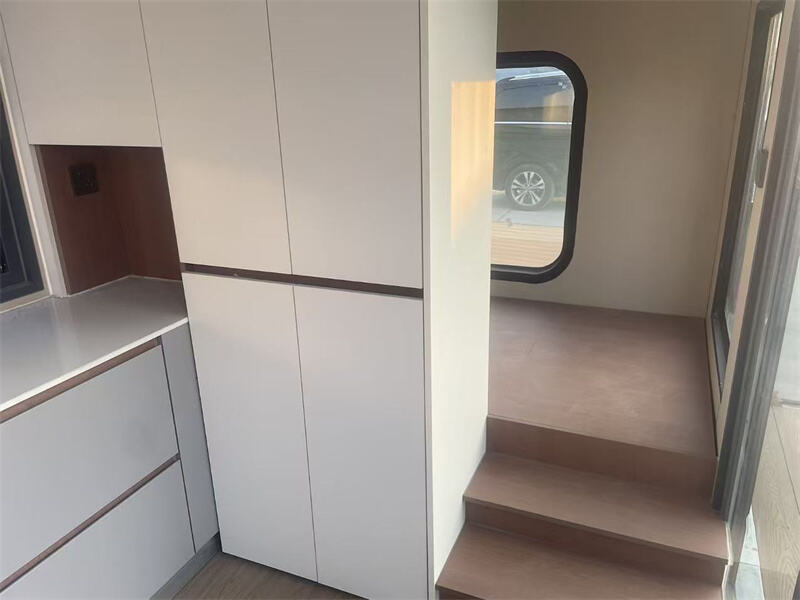

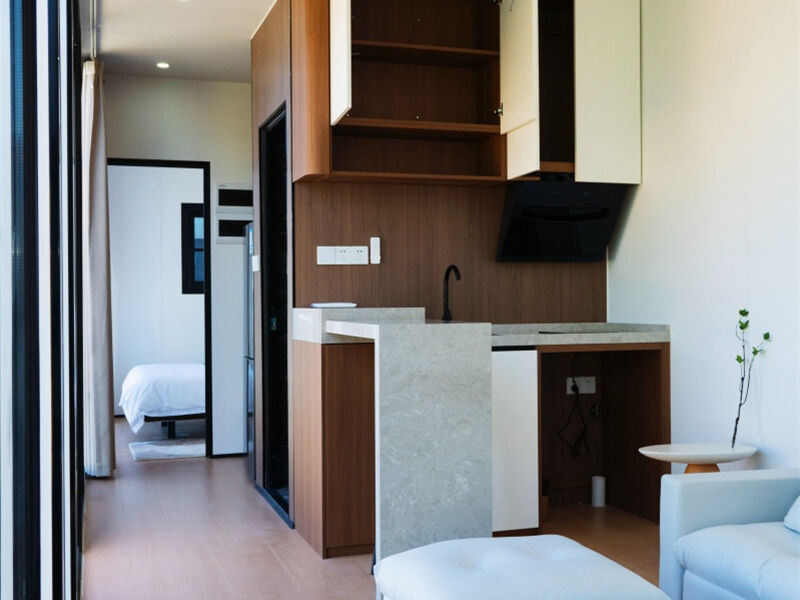

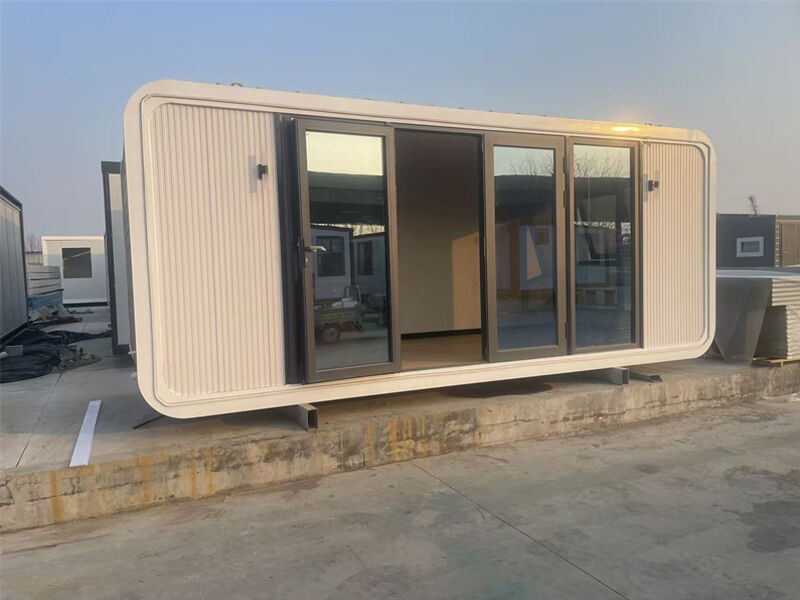

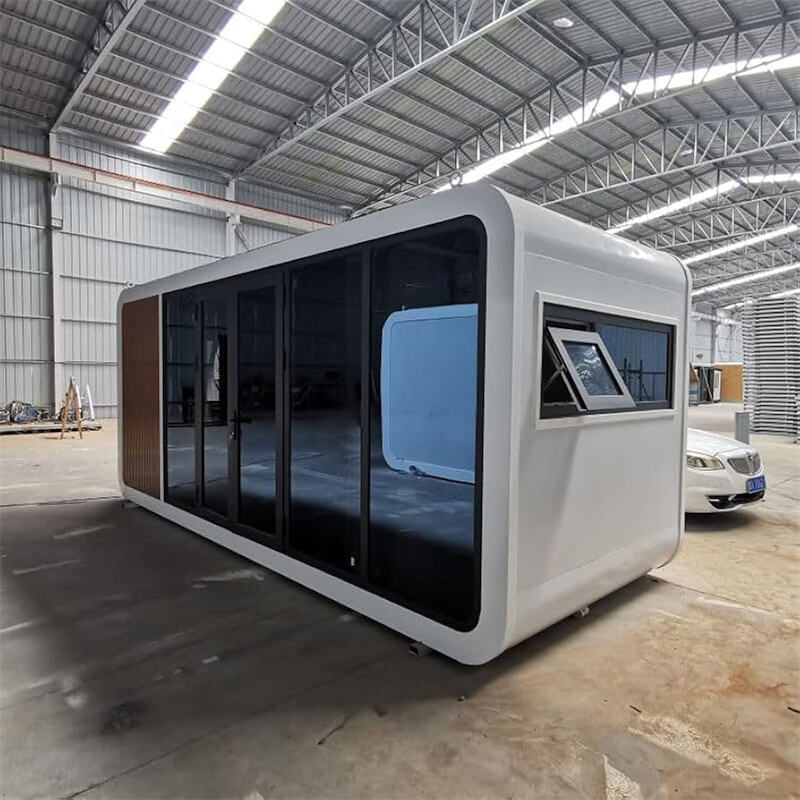

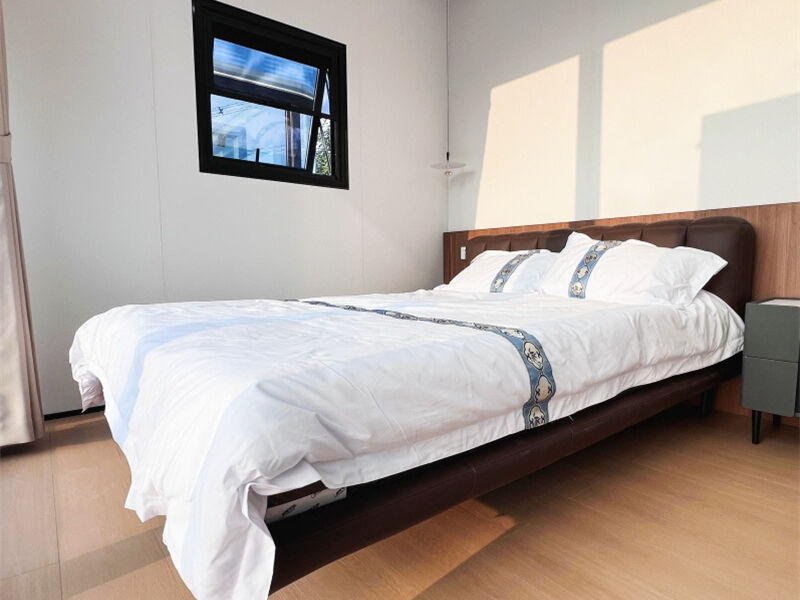

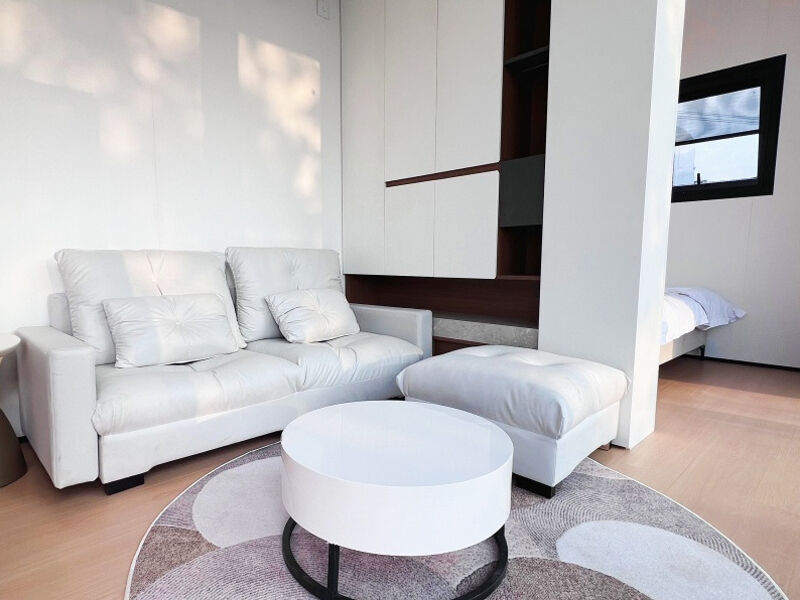

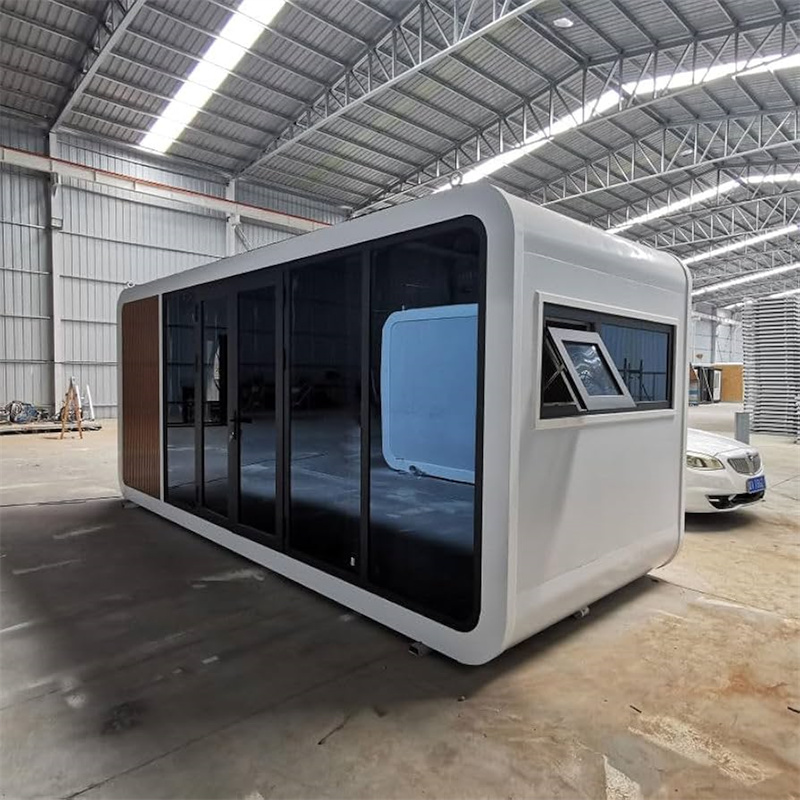

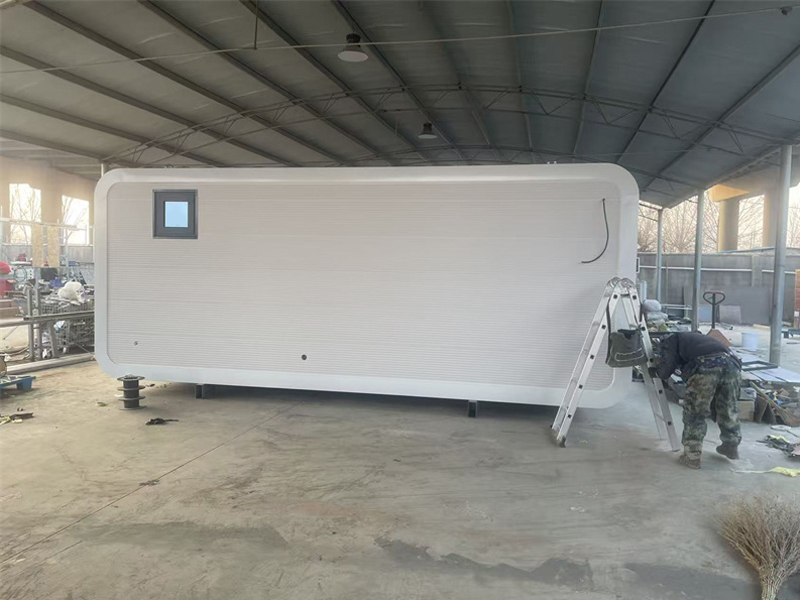

Product Showcase

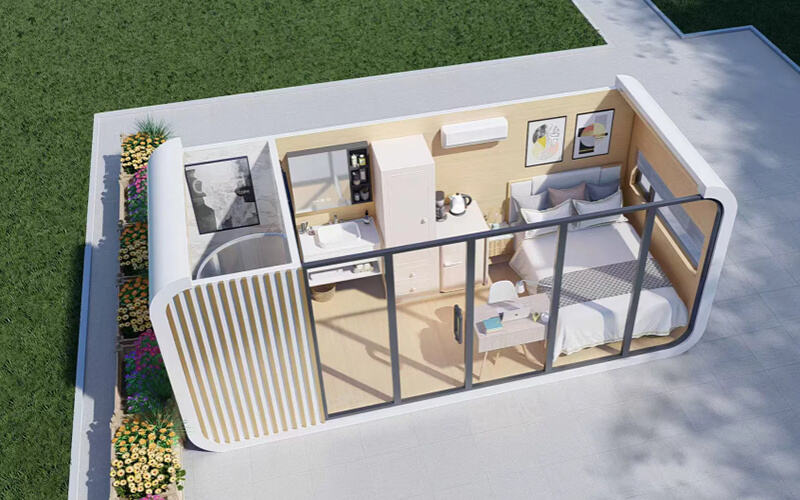

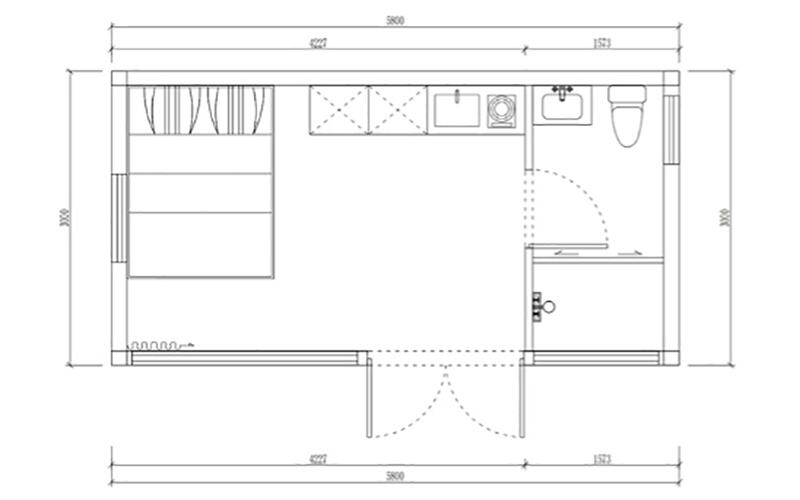

Interior Layout Design
Design Features and Technical Advantages
1. Modular prefabrication and integrated production ensure quality.
2. The foundation is simple and does not require a large area of hardened ground.

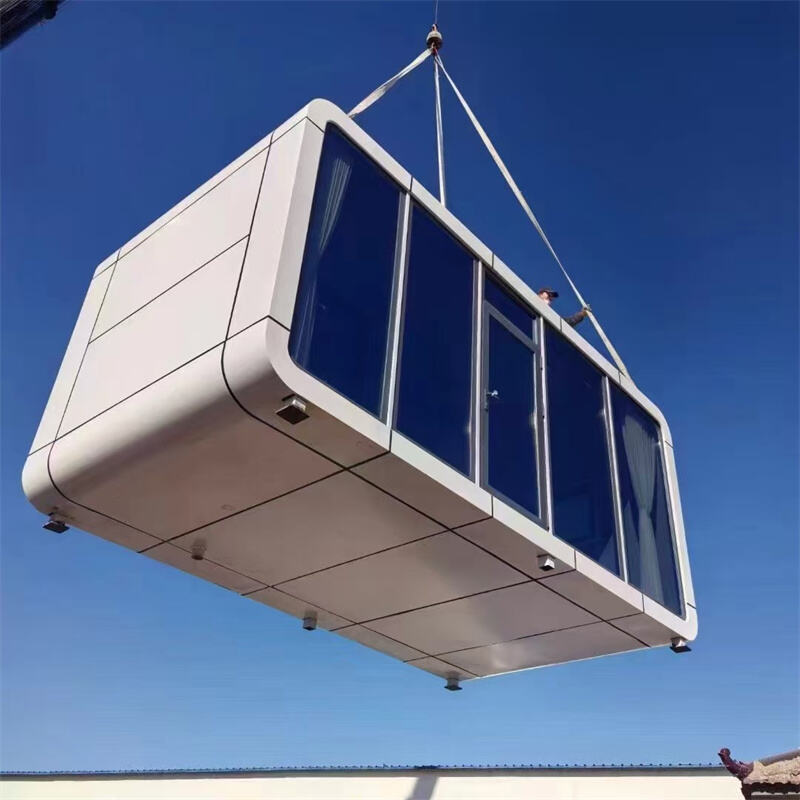

3. It can be hoisted as a whole. moved flexibly. and its layout can be adjusted at will.
4. Highly environmentally friendly. low energy consumption. and produces no construction waste.
5. Expansive panoramic windows and fully intelligent interior design enhance the user experience.
6. Its futuristic. space-age design is sure to attract attention.
7. Low investment. high returns. and can be adjusted according to project needs.
Product Parameters
| Model | 20FT | 30FT | 40FT | |||
| Area Covered | 13 Square Meters | 20 Square Meters | 26 Square Meters | |||
| Size | L5800mm X W2200mm X H2400mm | L9000mm X W2200mm X H2400mm | L11800mm X W2200mm X H2400mm | |||
| Approximately Weight | 2000KGS | 3000KGS | 4000GS | |||
| Configuration List | ||||||
| 1.Main Boday Material (Q235B) | Main body frame system | Galvanized rectangular steel pipes, 80*160*2.0 and 50*100*1.2, with 8 elbows of 80*160*2.0 | ||||
| Wall system | Galvanized rectangular steel pipes, 40*60*1.2mm and 30*50*1.2mm, with a horizontal spacing of not less than 60cm, and corner posts reinforced with diagonal bracing | |||||
| Doors and Windows | The window is constructed using galvanized rectangular steel tubing, reinforced with 40*80*1.2mm steel | |||||
| Roof | The roof is reinforced with galvanized rectangular steel pipes (50*100*1.2mm) | |||||
| Hook | 4X10cm hanging lugs | |||||
| 2.Ground | Substrate | 18mm high-density cement fiberboard | ||||
| Floor | SPC Click Flooring | |||||
| High-end skirting boards | Extremely narrow privacy glass door | |||||
| 3. Wall | Exterior wall | Aluminum composite panel (colors optional) | ||||
| glass curtain wall | ||||||
| Interior wall | Bamboo fiberboard (colors optional) | |||||
| Insulation | 40mm extruded polystyrene board | |||||
| 4.Roof | Exterior roof | 08 Corrugated Board | ||||
| Ceiling | Bamboo fiberboard (colors optional) | |||||
| 5.Doors and Windows | Doors | KFC Door | ||||
| Windows | 5+12+5 thermally broken aluminum alloy double-glazed tempered glass | |||||
| 6. Washroom | Wathroom facilities | Toilet, washbasin, sliding door separating wet and dry areas, shower head | ||||
| Furnish | Bamboo and wood fiberboard wall panels, floor tiles | |||||
| 7.Electrical Equipment | Residual current protection | Power failure protection device | ||||
| Electric wire | Main cable 4 sq mm, other cables 2.5 sq mm and 1.5 sq mm (configured according to customer's national standards) | |||||
| Switches & Sockets | Equipped with a 16A socket and switch (sockets are configured according to the customer's national standards) | |||||
| Lighting fixtures | LED downlights | |||||
Material Showcase
-

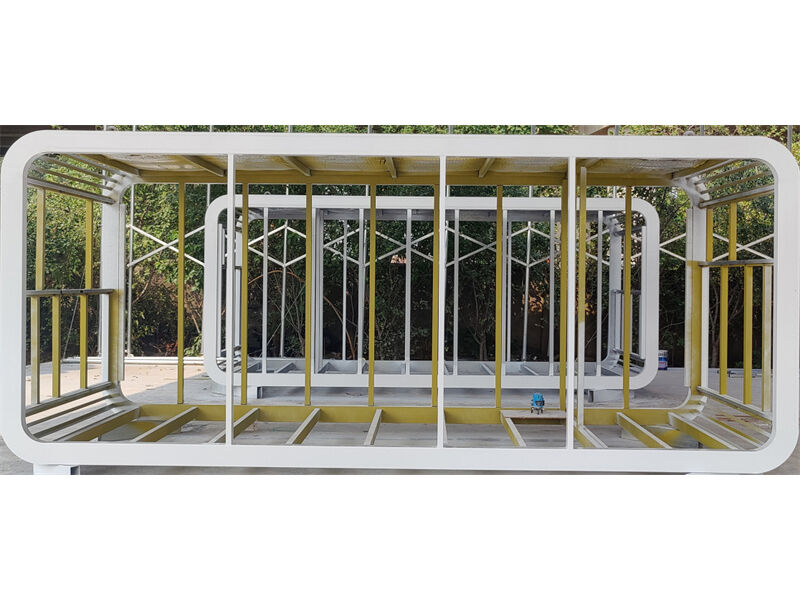

Main Frame
-
Cement Fiberboard
-

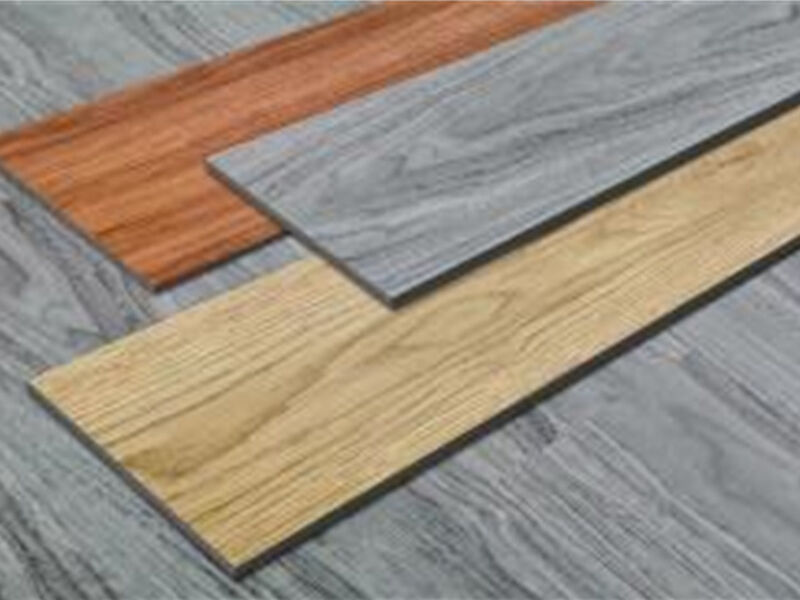

SPC Click Flooring
-

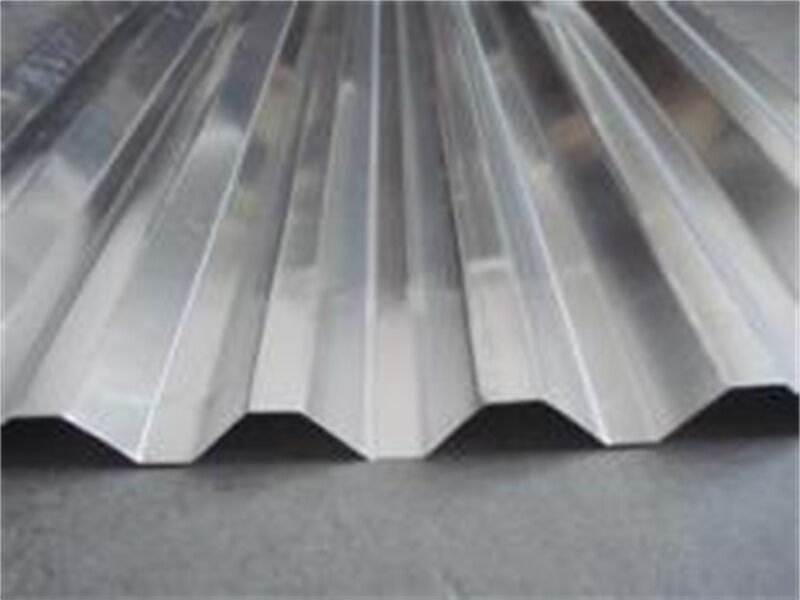

Corrugated Board
-

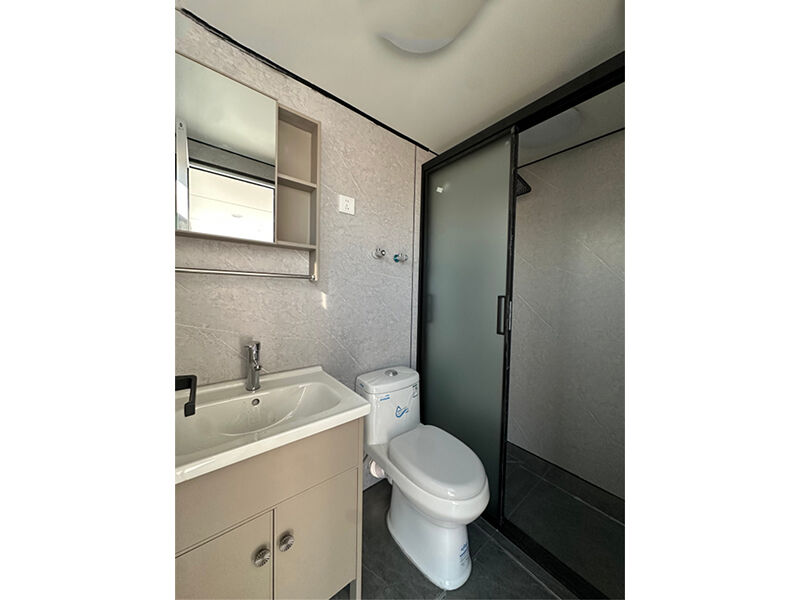

Wathroom Facilities
-

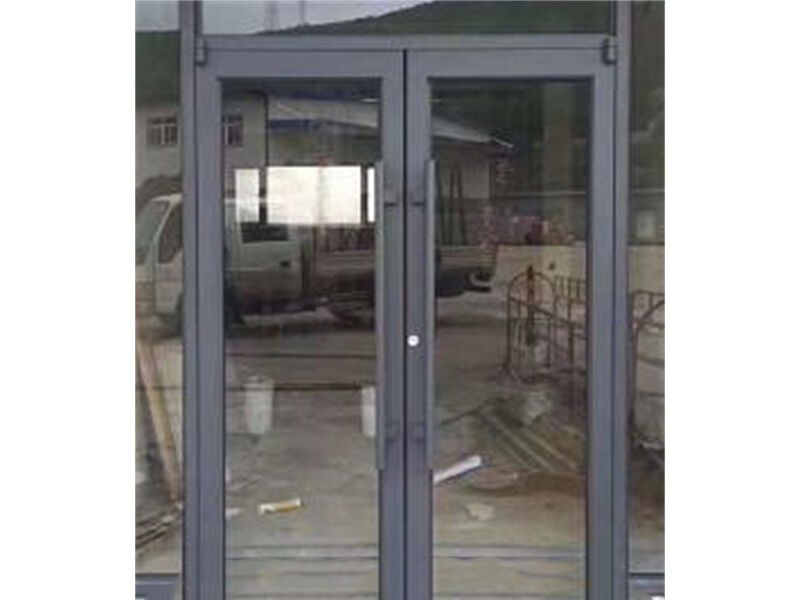

KFC Door
-

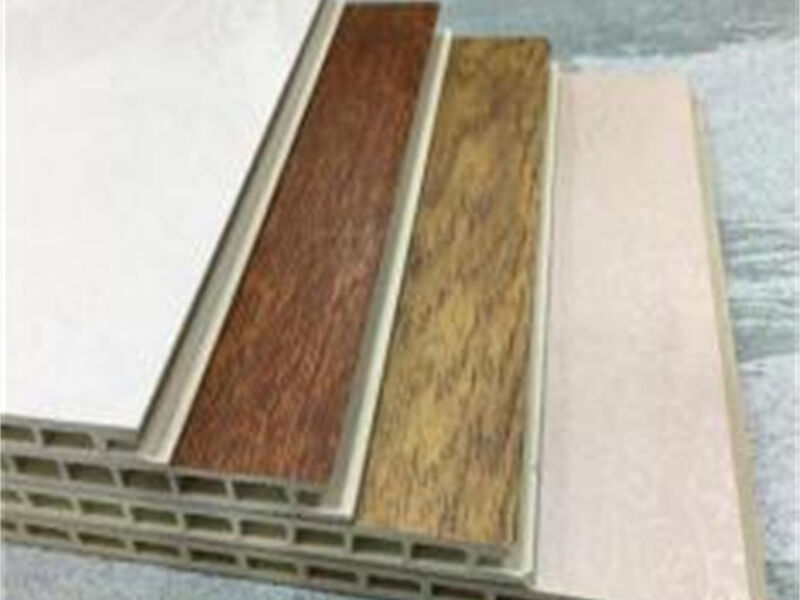

Bamboo Fiberboard
-
Glass Curtain Wall

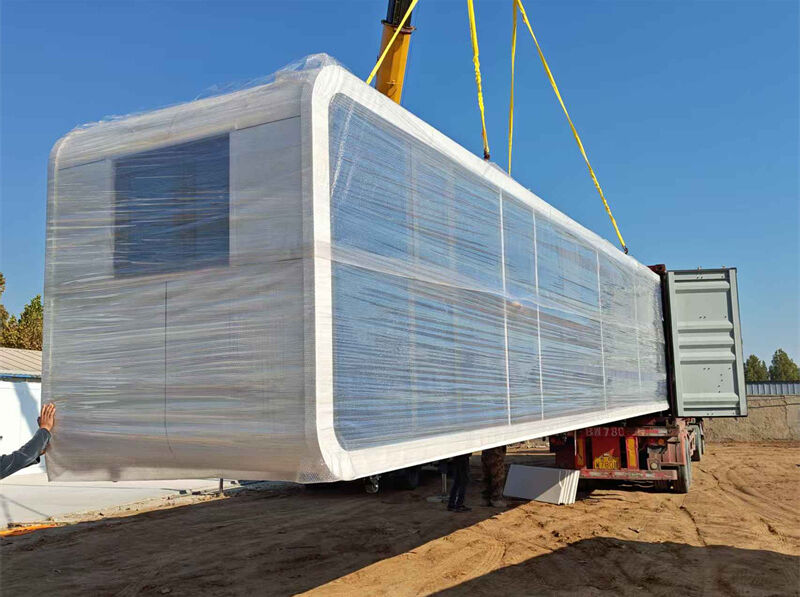

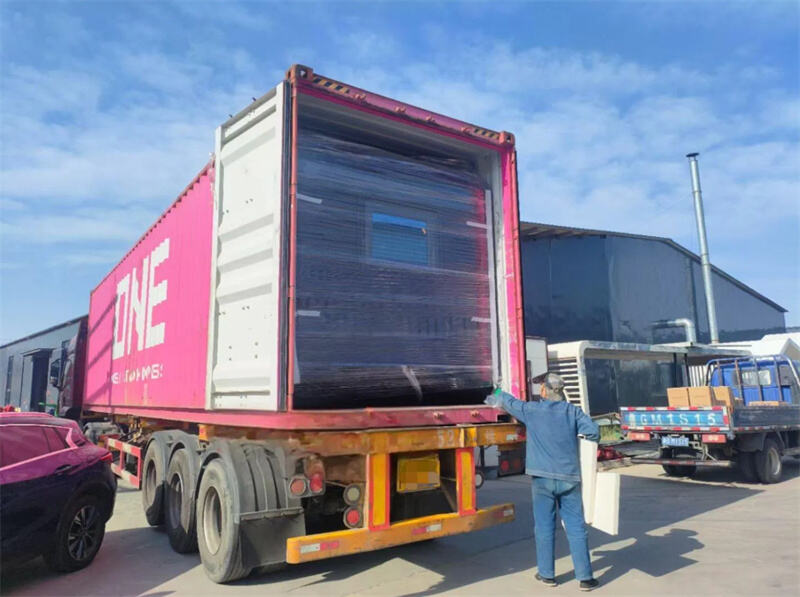

Package and Shipping
1. Package: The finished unit will be packed with protective materials for shipment to avoid damage during shipment.
2. Shipping: 40HQ Container.
3. Unloading: Use forklift to drag the house out, then use crane to hold and lay it on the ground.
FAQ
Q1. Are you Manufacture or Trading Company?
A: Our factory is in Jinan City, Shandong Province, welcome to visit us at any time.
Q2. Do you provide design services?
A: Yes, we can design complete solution drawings based on your requirements.
Q3. What do buyers need to prepare before installation?
A: The buyer needs to level the land and install electricity and drainage systems.
Q4. Do you provide installation services?
A: It is easy to install, we will provide installation manuals and videos.
