V7 Space Capsule House┃Prefabricated Capsule House┃ Space Capsule Home
Space Capsule House is a modular intelligent living unit that integrates future technology and minimalist design, with a focus on "space aesthetics" and multifunctional adaptability. It is suitable for high-end camping, cultural tourism vacation, emergency support and other scenarios.
Model: V7
Size: L11500mm X W3300mm X H3200mm
Area Covered: 38 Square Meters
Net Weight: 10000 KGS
Applications: Resort, Outdoor Camping, Emergency sites, Personal living etc.
Delivery Time: 30-40 Days

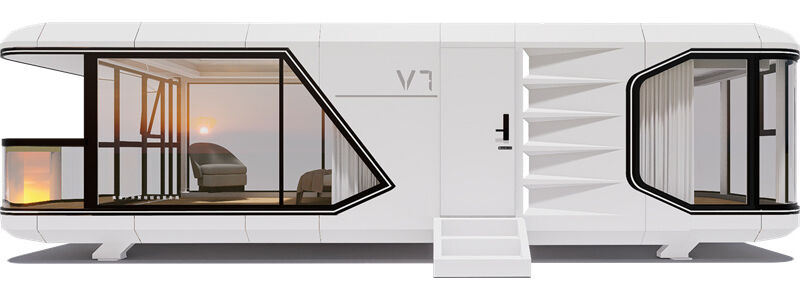

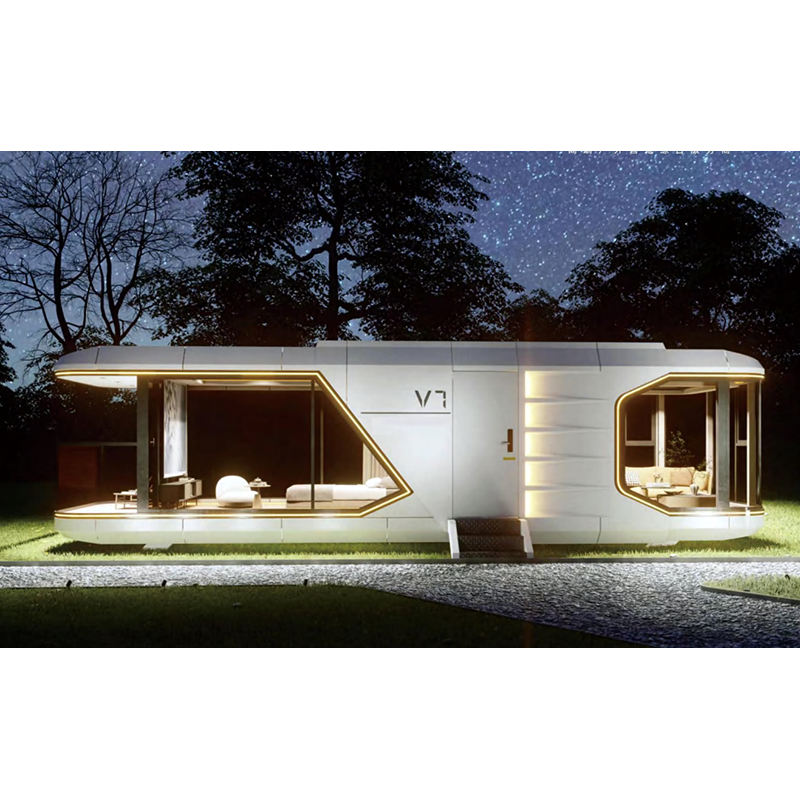

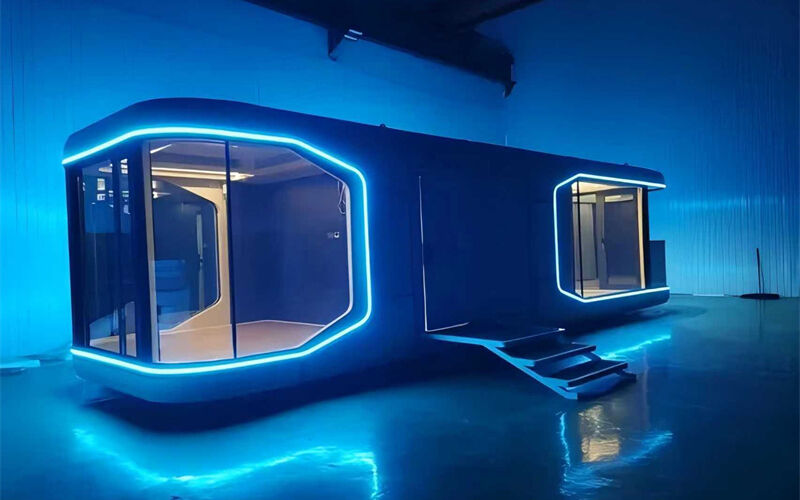

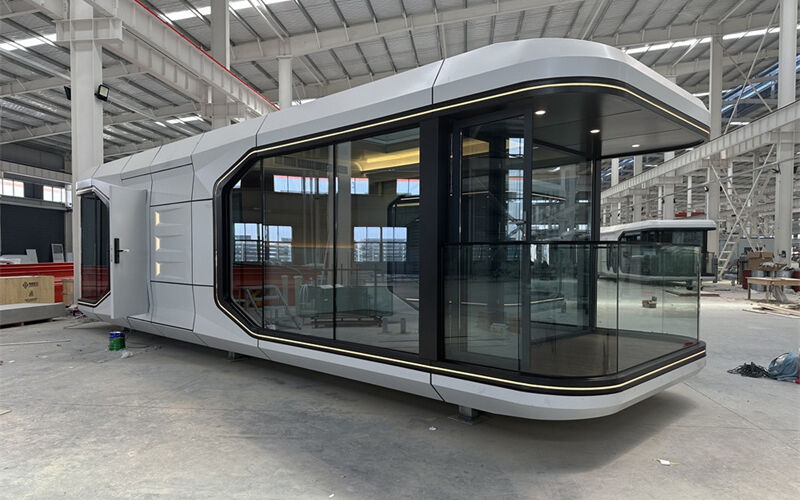

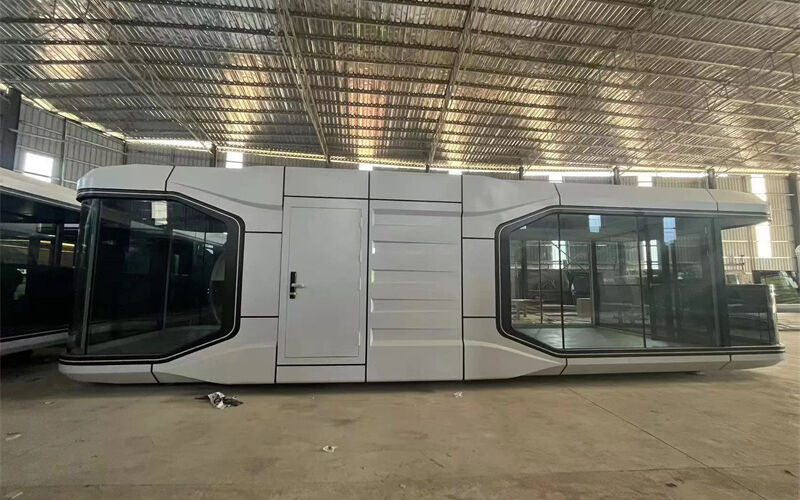

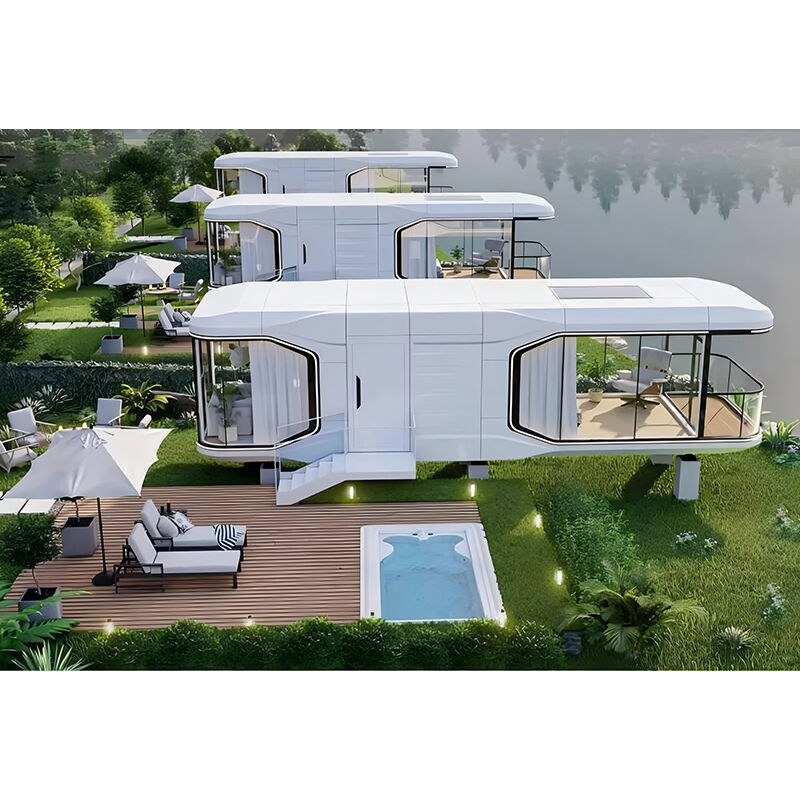

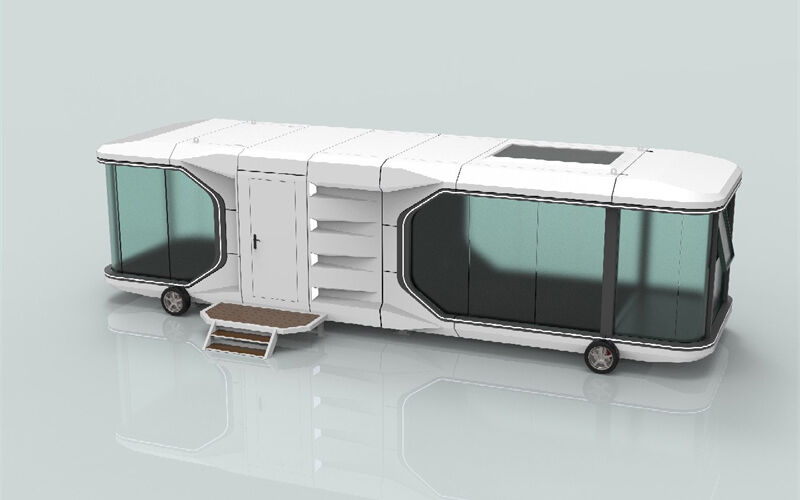

Product Showcase

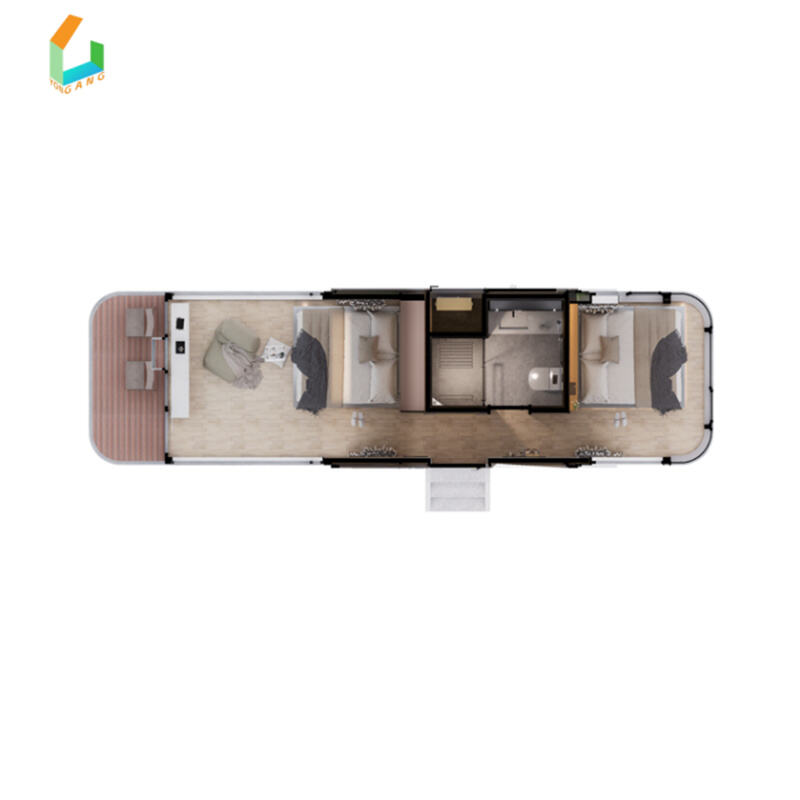

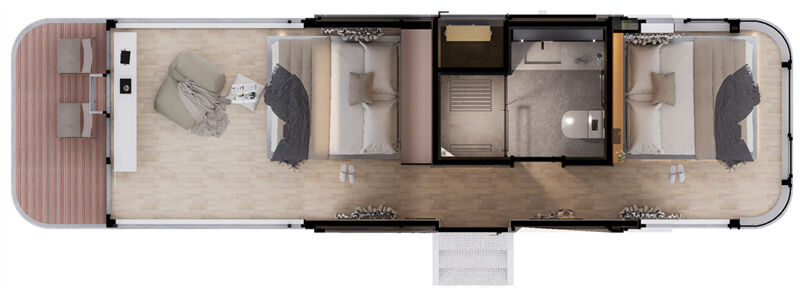

Interior Layout Design
Design Features and Technical Advantages
1. Modular prefabrication and integrated production ensure quality.
2. The foundation is simple and does not require a large area of hardened ground.
3. It can be hoisted as a whole. moved flexibly. and its layout can be adjusted at will.
4. Highly environmentally friendly. low energy consumption. and produces no construction waste.

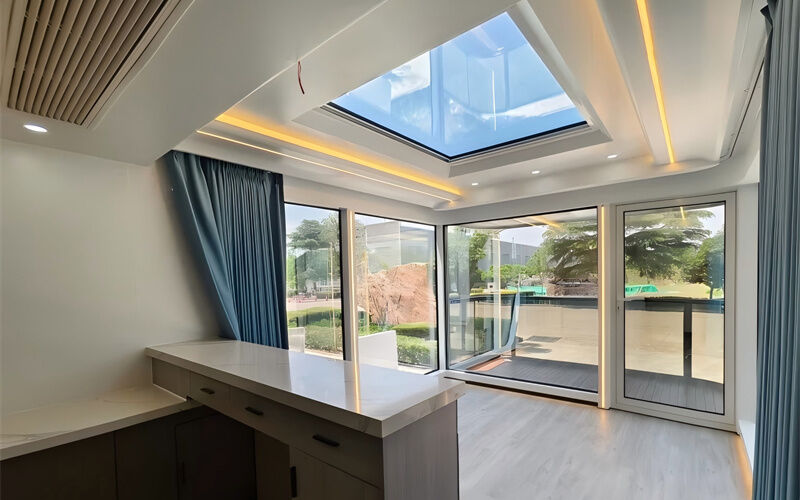

5. Expansive panoramic windows and fully intelligent interior design enhance the user experience.
6. Its futuristic. space-age design is sure to attract attention.
7. Low investment. high returns. and can be adjusted according to project needs.
Product Parameters
| Model | V3 | V5 | V7 | ||||
| Area Covered | 18 Square Meters | 28 Square Meters | 38 Square Meters | ||||
| Size | L5800mm X W3000mm X H3200mm | L8500mm X W3300mm X H3200mm | L11500mm X W3300mm X H3200mm | ||||
| Approximately Weight | 4000KGS | 8000KGS | 10000KGS | ||||

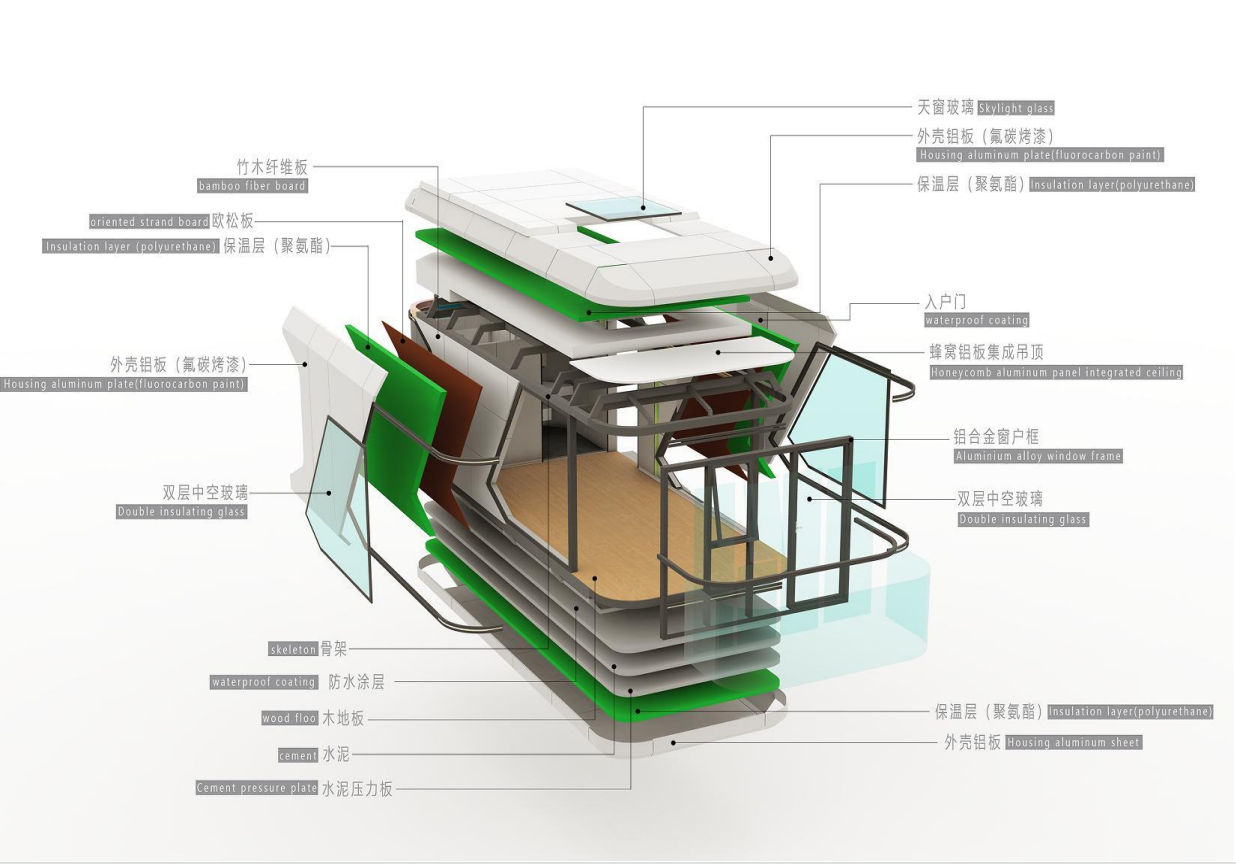

| V7 Standard Configuration List | |||||||
| 1.Foundation Decoration | 1 | Main body frame system | Hot dip galvanized steel structural system | ||||
| 2 | Window system | Double tempered hollow LOW-E glass with 6+15A+6(UV protection) | |||||
| 3 | Broken bridge aluminum doors and windows | 110mm Broken bridge aluminum doors and windows | |||||
| 4 | Thermal insulation system | Polyurethane foam 100mm | |||||
| 5 | Exterior wall system | Customized 2mm aircraft-grade aluminum plate with fluorocarbon paint | |||||
| 6 | Celing system | Honeycomb integrated aluminum panel | |||||
| 7 | Wall system | Carbon crystal plate interior wall finish | |||||
| 8 | Ground system | Cement pressure plate+ 3 layers of waterproofing mortar reinforced with anti-cracking steel wire mesh inside | |||||
| 9 | Outdoor balcony | Toughened glass guardrail+outdoor 23mm plastic wood floor | |||||
| 10 | Wall base substrate | OSB plate base substrate,light steel keel frame | |||||
| 11 | Cupboard | Jiangshan Oupa custom | |||||
| 12 | Floor | 5mm SPC Silent Stone Plastic Floor+Moisture sealer | |||||
| 13 | Security door for entry | Custom 304 stainless steel security door | |||||
| 14 | Smart lock | Smart door lock (fingerprint+password+key+card swipe) | |||||
| 15 | Skirting line | Aluminum alloy skirting line | |||||
| 2. Bathroom configuration | 1 | Top surface integrated ceiling | Honeycomb integrated aluminum panel | ||||
| 2 | Bath heater | Oulin bath heater | |||||
| 3 | Bathroom door | Extremely narrow privacy glass door | |||||
| 4 | Bathroom wall panel | High density waterproof stone crystal board | |||||
| 5 | Toilet waterproofing | Yuhong Waterproof Coating | |||||
| 6 | Floor drain | Liansu thickened 304 stainless steel odor proof floor drain | |||||
| 7 | Toilet | Brand non smart toilet | |||||
| 8 | Shower head | Integrated Copper Core Constant Temperature Boosting Shower Head | |||||
| 9 | Faucet | Integrated Copper Core Boosting Faucet | |||||
| 10 | Water heater | Midea energy-saving variable frequency 60L storage water heater | |||||
| 11 | Towel rack | SUS304 luxury bath towel storage rack | |||||
| 12 | Bathroom shelf | Shower area corner SUS304 storage rack | |||||
| 13 | Wall-mounted tissue box | Waterproof wall mounted toilet tissue box | |||||
| 14 | Wet and dry separation door | Glass sliding/swing door | |||||
| 15 | Dry area basin countertop | High end quartz stone+under table basin | |||||
| 16 | Bathroom cabinet | Jiangshan Oupa custom | |||||
| 17 | Cosmetic mirror | 4K Eye protection AMRO smart LED beauty mirror | |||||
| 18 | Floor tile | Brand anti slip ceramic tiles | |||||
| 3. Appliance configuration | 1 | Switch and socket | NVC Ultra-thin Series | ||||
| 2 | Waterway circuit | Guangdong Liansu line pipe,Yanggu green line | |||||
| 3 | Lighting system | OPPLE Lighting | |||||
| 4 | Heating and cooling air conditioning | Midea 2P Inverter Wall-mounted Air Conditioners | |||||
Package and Shipping
1. Package: The finished unit will be packed with protective materials for shipment to avoid damage during shipment.

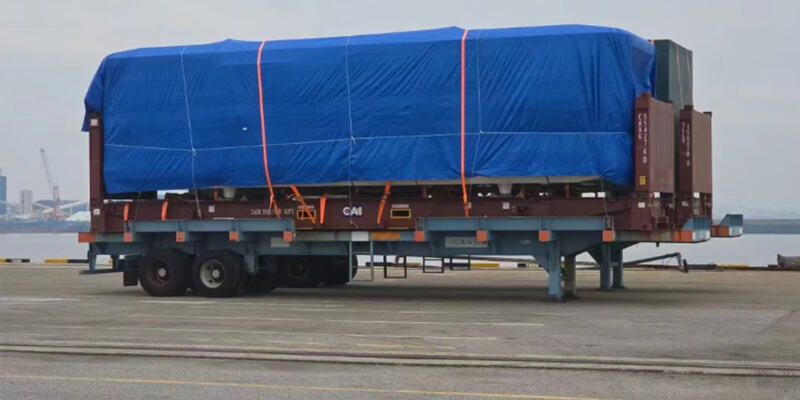

2. Shipping: 40FT Flat Rack Container.

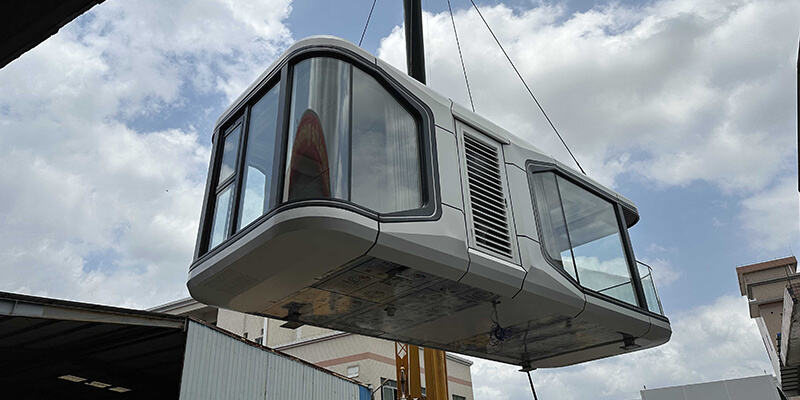

3. Unloading: Use crane to hold and lay it on the ground.
FAQ
Q1. Are you Manufacture or Trading Company?
A: Our factory is in Jinan City, Shandong Province, welcome to visit us at any time.
Q2. Do you provide design services?
A: Yes, we can design complete solution drawings based on your requirements.
Q3. What do buyers need to prepare before installation?
A: The buyer needs to level the land and install electricity and drainage systems.
Q4. Do you provide installation services?
A: It is easy to install, we will provide installation manuals and videos.
