20-Foot Double-Wing Expandable Container House┃Movable Modular House
Double-Wing expandable container house is a new generation of rapidly deployable modular mobile space. By synchronously expanding the "Double Side Wings," the usable area instantly increases to 2-3 times its original size. It is a flexible building system that is movable, foldable, and can be activated at any time.
Expand Size: L5900mm X W6300mm X H2480mm
Land Area: 37 Square Meters
Net Weight: 2500 to 3000 KGS
Exterior Color: White, Grey, Wood color or As Your Request
Applications: Family Home, Office, Hotel, Shop , Camp, etc.
Delivery Time: 10-20 Days

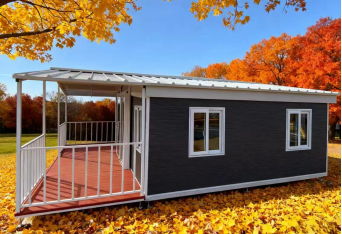

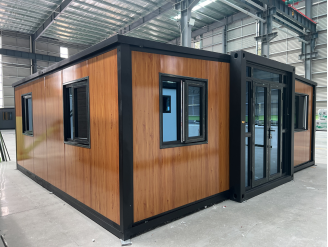

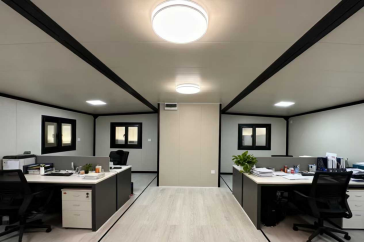

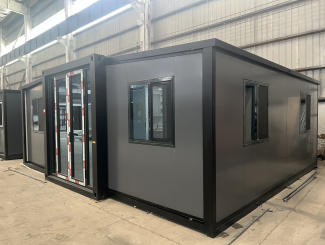

Product Showcase

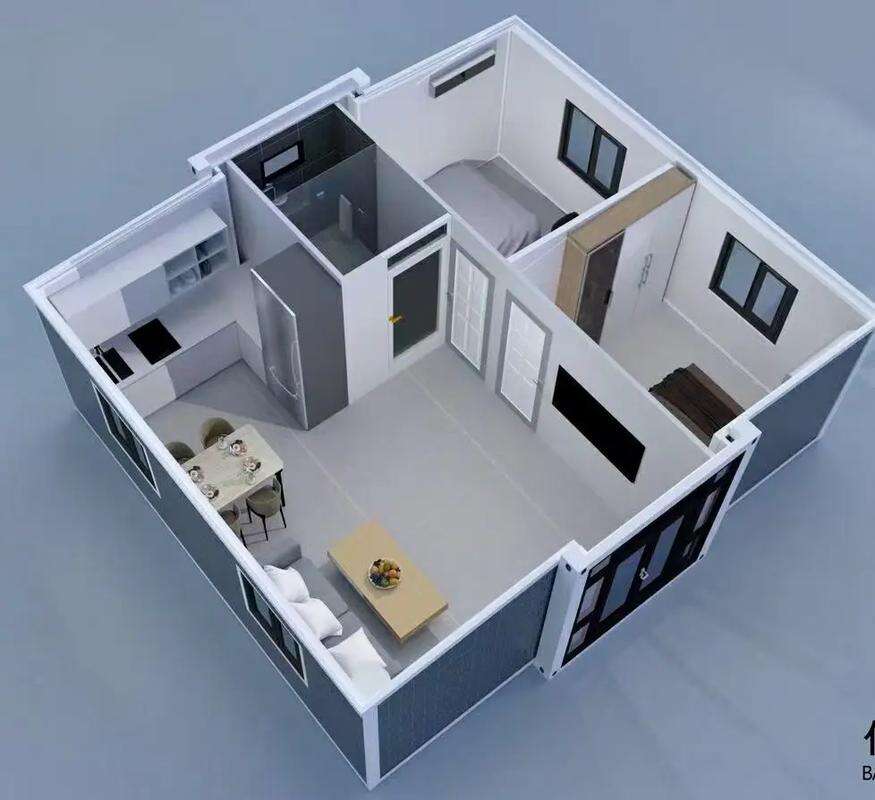

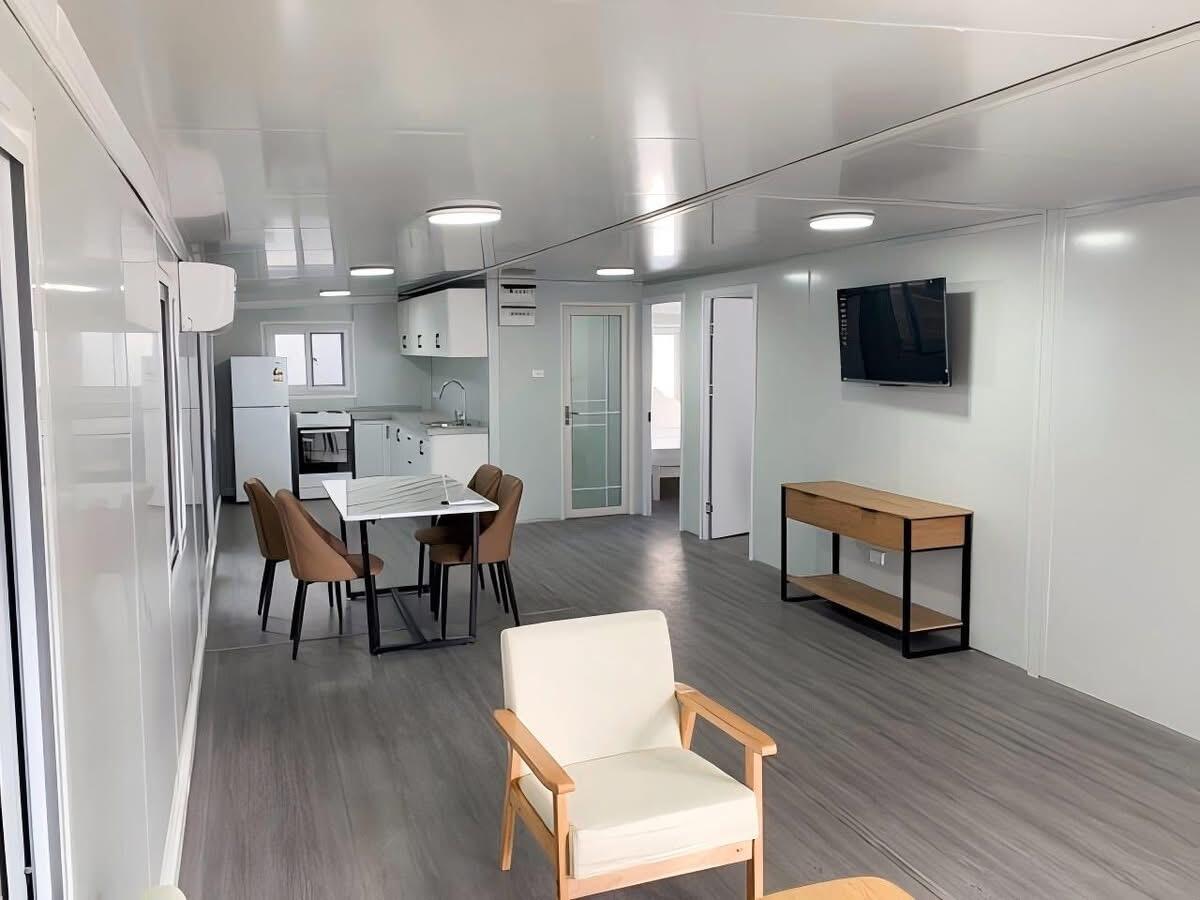

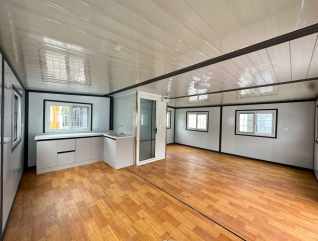

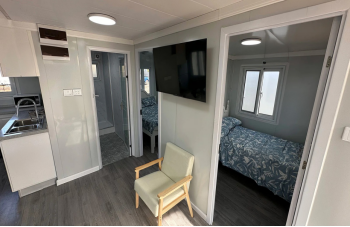

Interior Layout Design

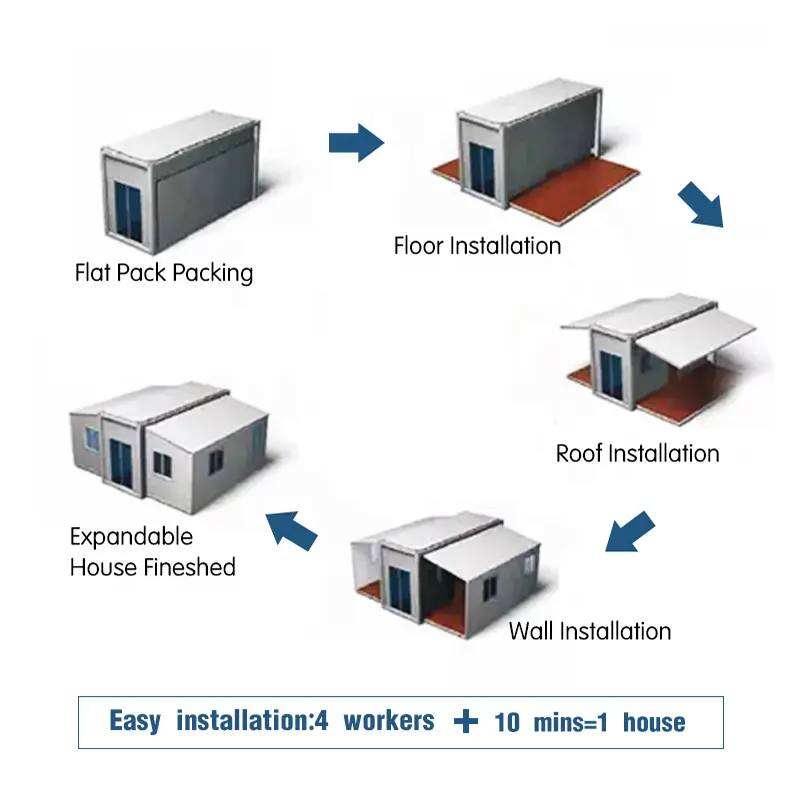

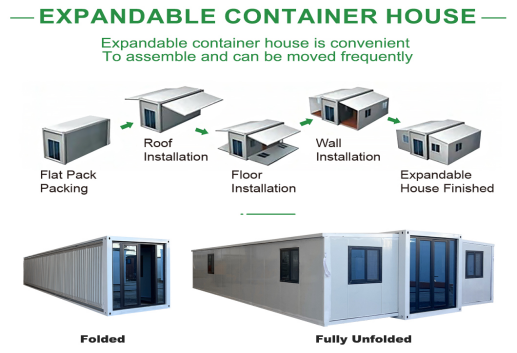

Installation Steps
Product Parameters
| House Size | 20 Foot | 30 Foot | 40 Foot | ||||
| Land Area | 37 Square Meters | 56 Square Meters | 74 Square Meters | ||||
| Expand Size | L5900mm X W6300mm X H2480mm | L9000mm X W6300mm X H2480mm | L11800mm X W6300mm X H2480mm | ||||
| Folded Size | L5900mm X W2200mm X H2480mm | L9000mm X W2200mm X H2480mm | L11800mm X W2200mm X H2480mm | ||||
| Approximately Weight | 2500KGS - 3000KGS | 3000KGS - 3500KGS | 4000KGS - 5000KGS | ||||
| Color | White, Grey, Wood Color or As Client Request | ||||||

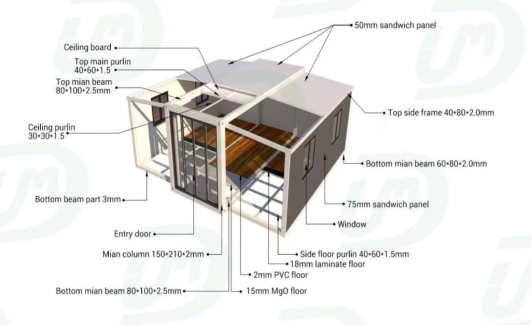

| Main Material | Galvanized Steel Structure Frame With Wall, Roof, Ground, Doors, Windows, Other Accessories, etc. | ||||||

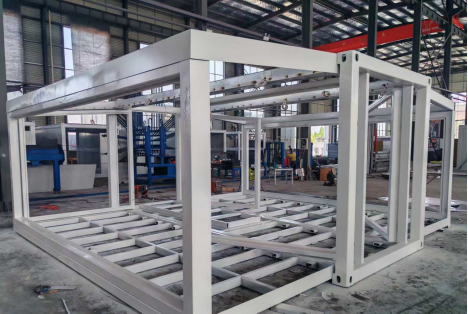

| Steel Structure Frame | Galvanized Steel Square Pipe, Bent Part, Hinges with Electrostatic Powder Coating/Direct Plastic Powder Coating | ||||||
| Ground | 18mm Thick Cement Fiber Floor , Plastic Floor Covering | ||||||
| Wall | 50mm/75mm/100mm EPS/Rock Wool/PU Sandwich Panel | ||||||
| Roof | 50mm -70mm EPS Color Steel Composite Plate or PU Sandwich Panel, Galvanized Steel Roof Covering. | ||||||
| Door | Enter through the KFC door and Steel Door | ||||||
| Window | Aluminum Alloy Hollow Sliding Window | ||||||
| Electrical System | 3C/ CE / CL / SAA Standard, With Distribution Box, Lights, Switch, Sockets, etc. | ||||||
| Optional Accessories | A/C, Kitchen Cabinet, Water Supply and Drainage, Toilet, Dry-Wet Separation Sliding Door, Bathroom, Shower, Decorative Material, etc. | ||||||

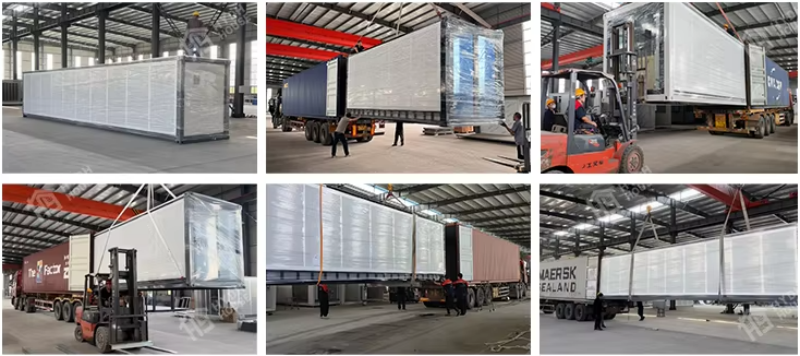

Package and Shipping
1. Package: The finished unit will be packed with protective materials for shipment to avoid damage during shipment.
2. Shipping: 1x40HQ Container Can Put 2 Folded 20 FOOT House.
3. Unloading: Use forklift to drag the house out, then use crane to hold and lay it on the ground.
FAQ
Q1. Are you Manufacture or Trading Company ?
A: Our factory is in Weifang City, Shandong Province, welcome to visit us at any time.
Q2. Do you provide design services?
A: Yes, we can design complete solution drawings based on your requirements.
Q3. What do buyers need to prepare before installation?
A: The buyer needs to level the land and install electricity and drainage systems.
Q4. Do you provide installation services?
A: It is easy to install, we will provide installation manuals and videos.
